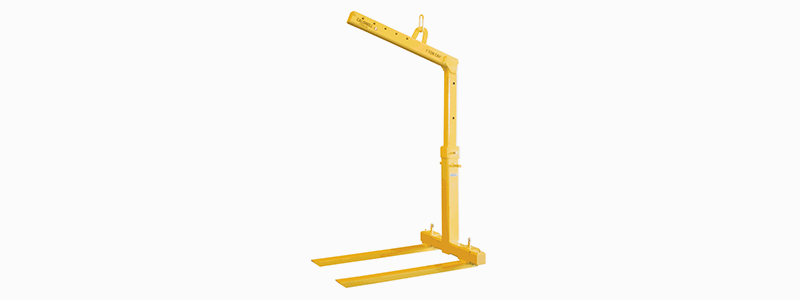

Adjustable Load Lifter
Use your crane to handle a wide range of loads.
Product Features

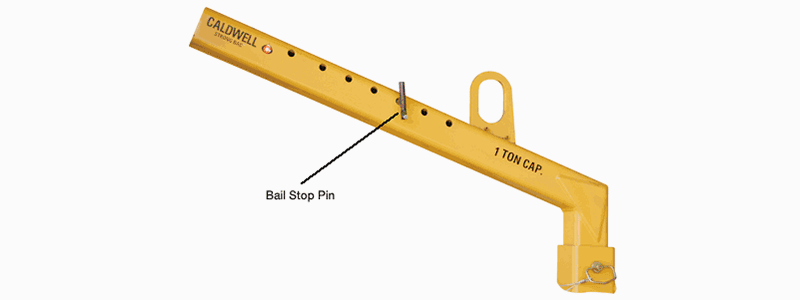

- Once the bail pin is set the pallet lifter remains balanced whether full or empty to make the job faster and safer.
- Adjustable bail provides for balanced handling of items with different load centers.
- Adjustable throat allows for the correct handling of higher stacked loads.

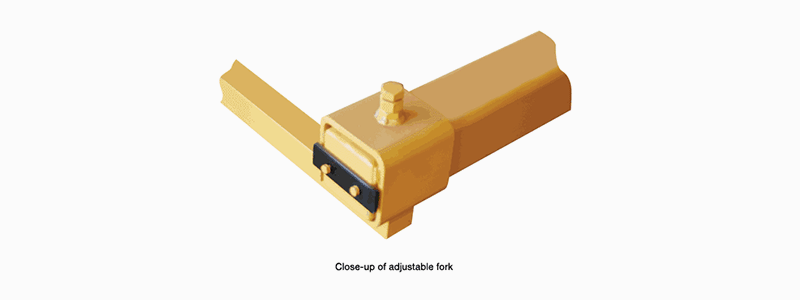

- Adjustable forks allow for proper placement of the forks spread.
- The auto return bail automatically levels empty pallet lifter saving time and effort.
- Heavy duty construction for years of trouble free service.
- Complies with ASME standards.

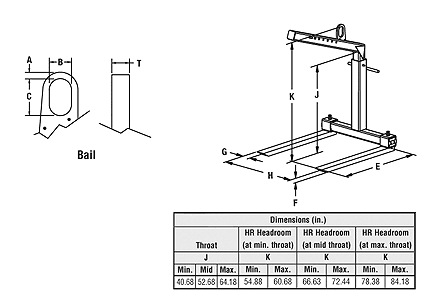

Product Specifications
| Model 90ACL Specifications | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model numbers shown in green are part of our INSTOCK program. | |||||||||||
| Model Number | Capacity (ton) | E (in.) | F (in.) | G (in.) | H min (in.) | H max (in.) | A (in.) | B (in.) | C (in.) | T (in.) | Weight (lbs) |
| 90ACL-2-42 | 2 | 43.00 | 2.00 | 4.00 | 17.50 | 36.00 | .88 | 3.00 | 5.00 | 0.75 | 515 |
