Product Features

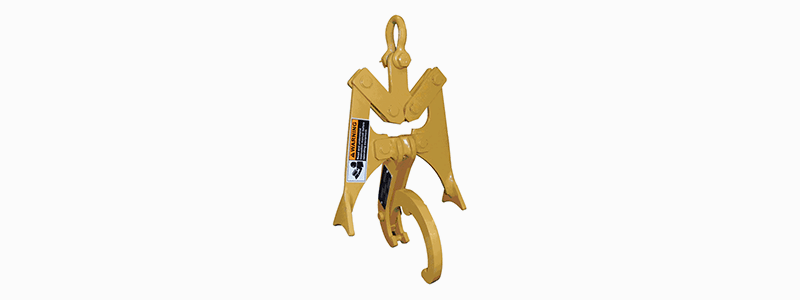

  • Heavy duty automatic clamping design.
  • Outriggers stabilize the pipe during lift.
  • No blocking is required.

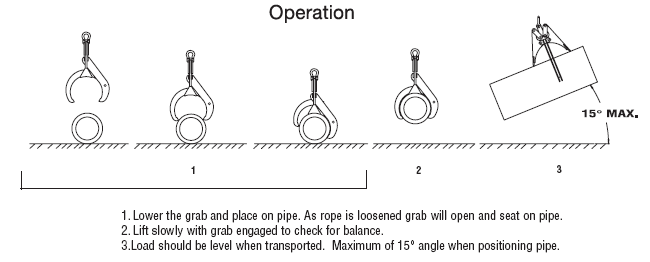

  • The operator only has to guide the clamp into place.
  • Pipes are handled quickly and efficiently when properly balanced.
  • Excellent for cast iron, steel pipe, tubing, and other cylindrical objects.
  • Pipe grab sizes listed handle ASA cast iron pipe – standard, extra strong, and double strong (all have same O.D.).
  • Complies with ASME standards.

Product Specifications



Model C & S Specifications
Model numbers shown in green are part of our INSTOCK program.
Model Number Rated Capacity (lbs.) Cast Iron Pipe O.D. (in.) Steel Pipe O.D. (in.) A (in.) B (in.) C (in.) D (in.) E (in.) F (in.) Weight (lbs.)
C-3 450 4.0 - 5 10 6 .38 1.03 1.44 7
C-4 600 4.8 - 8 14 7 .44 1.16 1.69 9
C-6 1000 6.9 - 11 17 11 .50 1.31 1.88 15
C-8 1400 9.05 - 13 22 14 .50 1.31 1.88 25
C-10 2000 11.1 - 15 27 17 .63 1.69 2.38 47
C-12 2500 13.2 - 18 32 20 .63 1.69 2.38 72
C-14 3500 15.3 - 22 38 23 .88 2.28 3.31 105
S-3 450 - 3.5 5 10 6 .38 1.03 1.44 7
S-4 600 - 4.5 8 14 7 .44 1.16 1.69 9
S-6 1000 - 6.63 11 17 11 .50 1.31 1.88 15
S-8 1400 - 8.63 13 22 14 .50 1.31 1.88 25
S-10 2000 - 10.75 15 27 17 .63 1.69 2.38 47
S-12 2500 - 12.75 18 32 20 .63 1.69 2.38 72
S-14 3500 - 14.0 22 38 23 .88 2.28 3.31 105
