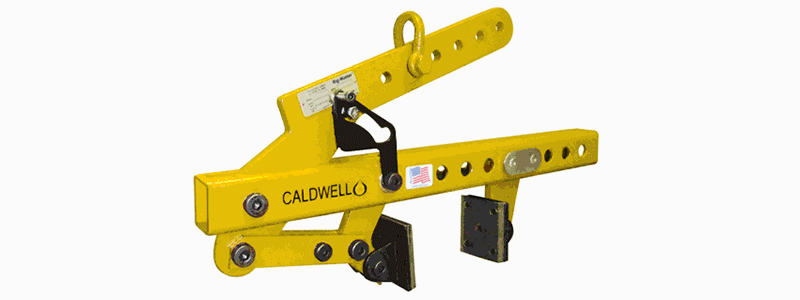

Product Features

  • Designed for handling cured concrete products.
  • Multiple adjusting ranges.
  • Pivoting pads align with the load surface for proper contact.
  • Adjustable lifting point to ensure a balanced lift.
  • Complies with ASME standards.

Product Specifications


Model 176 Specifications
Model numbers shown in green are part of our INSTOCK program.
Model Number Rated Capacity (lbs.) Load Width Min. - Max. (in.) J (in.) L (in.) HR Min. - Max. (in.) A (in.) B (in.) C (in.) Weight (Ibs.)
176-1/4 550 3/8 - 9-7/16 23.75 4-1/8 9 - 16.2 7/16 1-1/8 15/16 16
176-1/2 1100 3/8 - 9-7/16 23.75 4-1/8 9 - 16.2 7/16 1-1/8 15/16 21
