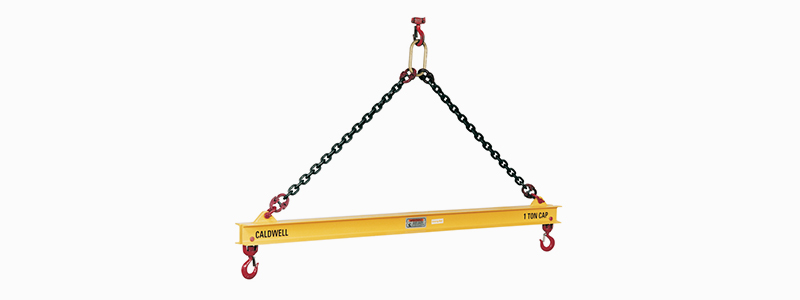

Product Features

  • Ideal where headroom is not limited.
  • Adds stability to lift.
  • Available with standard chain or wire rope rigging.
  • Available with Adjust-A-Leg® rigging for off center load adjustment (minimum lifting capacity will be approximately 10-15% of beam rating).
  • Wide range of additional sizes and capacities available.
  • Complies with ASME standards.

Product Specifications

Model 30 Specifications
Model numbers shown in red are part of our QUICKSHIP program.
Model Number Capacity (tons) Spread (ft) HR (in.) A (in.) B (in.) C (in.) F (in.) O (in.) Weight (lbs.)*
30-2-4 2 4 34 1/2 2-1/2 5 4-1/4 31/32 45
30-2-6 2 6 46 1/2 2-1/2 5 4-1/4 31/32 60
30-2-8 2 8 58 1/2 2-1/2 5 4-1/4 31/32 82
30-2-10 2 10 70 1/2 2-1/2 5 4-1/4 31/32 95
30-2-12 2 12 82 1/2 2-1/2 5 4-1/4 31/32 115
30-2-16 2 16 106 1/2 2-1/2 5 4-1/4 31/32 225
30-2-20 2 20 132 1/2 2-1/2 5 4-1/4 31/32 408
30-2-24 2 24 156 1/2 2-1/2 5 4-1/4 31/-32 445
30-5-4 5 4 37 1 3-1/2 7 6 1-1/16 62
30-5-6 5 6 49 1 3-1/2 7 6 1-1/16 78
30-5-8 5 8 61 1 3-1/2 7 6 1-1/16 100
30-5-10 5 10 73 1 3-1/2 7 6 1-1/16 117
30-5-12 5 12 83 1 3-1/2 7 6 1-1/16 168
30-5-16 5 16 110 1 3-1/2 7 6 1-1/16 305
30-5-20 5 20 134 1 3-1/2 7 6 1-1/16 435
30-5-24 5 24 158 1 3-1/2 7 6 1-1/16 661
30-10-4 10 4 41 1-1/4 4-3/8 8-3/4 8-1/8 1-1/2 100
30-10-6 10 6 53 1-1/4 4-3/8 8-3/4 8-1/8 1-/12 122
30-10-8 10 8 64 1-1/4 4-3/8 8-3/4 8-1/8 1-1/2 156
30-10-10 10 10 77 1-1/4 4-3/8 8-3/4 8-1/8 1-1/2 180
30-10-12 10 12 86 1-1/4 4-3/8 8-3/4 8-1/8 1-1/2 240
30-10-16 10 16 113 1-1/4 4-3/8 8-3/4 8-1/8 1-1/2 380
30-10-20 10 20 138 1-1/4 4-3/8 8-3/4 8-1/8 1-1/2 532
30-10-24 10 24 163 1-1/4 4-3/8 8-3/4 8-1/8 1-1/2 915
30-15-4 15 4 43 1-1/2 5-1/4 10-1/2 9-1/4 1-3/4 126
30-15-6 15 6 55 1-1/2 5-1/4 10-1/2 9-1/4 1-3/4 155
30-15-8 15 8 65 1-1/2 5-1/4 10-1/2 9-1/4 1-3/4 185
30-15-10 15 10 80 1-1/2 5-1/4 10-1/2 9-1/4 1-3/4 242
30-15-12 15 12 92 1-1/2 5-1/4 10-1/2 9-1/4 1-3/4 270
30-15-16 15 16 116 1-1/2 5-1/4 10-1/2 9-1/4 1-3/4 420
30-15-20 15 20 140 1-1/2 5-1/4 10-1/2 9-1/4 1-3/4 665
30-15-24 15 24 167 1-1/2 5-1/4 10-1/2 9-1/4 1-3/4 953
30-20-4 20 4 46 1-3/4 6 12 9-3/4 2 170
30-20-6 20 6 58 1-3/4 6 12 9-3/4 2 200
30-20-8 20 8 69 1-3/4 6 12 9-3/4 2 233
30-20-10 20 10 82 1-3/4 6 12 9-3/4 2 315
30-20-12 20 12 94 1-3/4 6 12 9-3/4 2 350
30-20-16 20 16 118 1-3/4 6 12 9-3/4 2 540
30-20-20 20 20 140 1-3/4 6 12 9-3/4 2 775
30-20-24 20 24 170 1-3/4 6 12 9-3/4 2 1341
30-30-6 30 6 60 1-3/4 6 12 9-3/4 2 285
30-30-8 30 8 70 1-3/4 6 12 9-3/4 2 402
30-30-10 30 10 83 1-3/4 6 12 9-3/4 2 440
30-30-12 30 12 95 1-3/4 6 12 9-3/4 2 530
30-30-16 30 16 120 1-3/4 6 12 9-3/4 2 888
30-30-20 30 20 145 1-3/4 6 12 9-3/4 2 1390
30-40-6 40 6 65 2 7 14 13 2-3/4 563
30-40-8 40 8 77 2 7 14 13 2-3/4 695
30-40-10 40 10 89 2 7 14 13 2-3/4 781
30-40-12 40 12 102 2 7 14 13 2-3/4 1058
3-40-16 40 16 127 2 7 14 13 2-3/4 1364
* Weight = Only Beam and hooks (top rigging is not included).
