Four Point Beam

This low headroom lifting beam handles large loads using multiple pick points. Each unit is custom designed for your specific application. Complies with ASME standards.

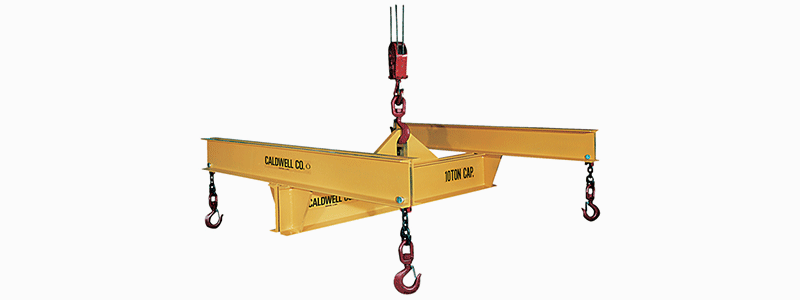

10 ton Model 27F designed with very low headroom to accommodate clearance issue for user.

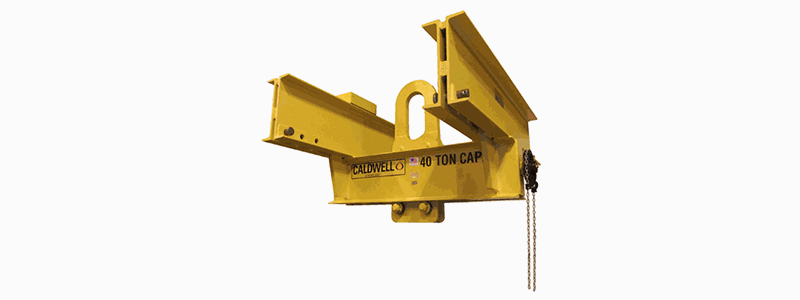

Model 27F-40-48/60 Four Point Beam, 40 ton capacity shown.

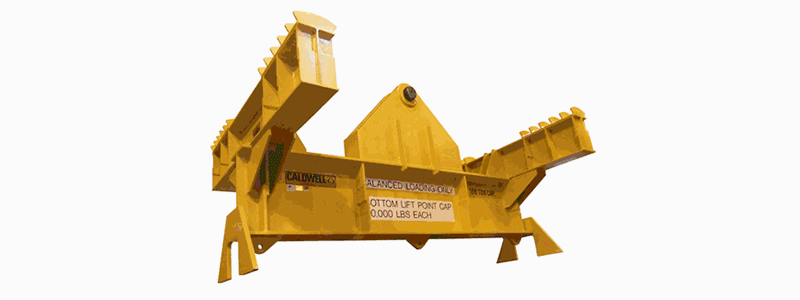

Model 27F-100-12/8 Four Point Beam, 100 ton capacity shown.

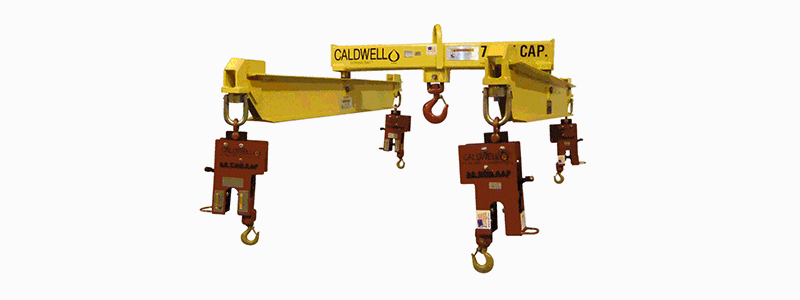

Model 27F-7103/60 Four Point Beam shown with rig release lifters.

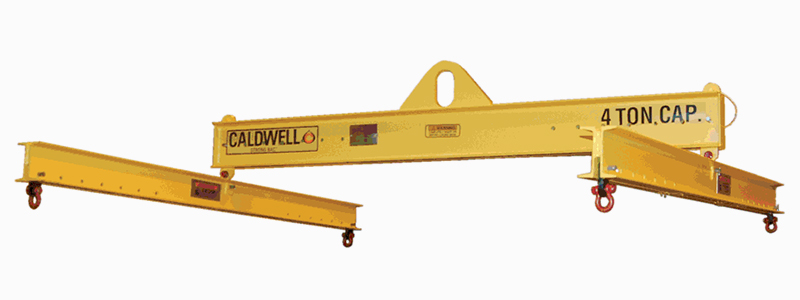

Model 27F - 4 Ton 4 point lifing Beam shown.

Fill out our application evaluation form below for a quote on your specific application.

OPTION A – Multiple Bails: Use 2 or 4 hoists to increase lifting stability.
OPTION B – Adjustable Bail: Is used when load-leveling capability is required along length of load.
OPTION C – Adjustable Spread: Use when adjustability in length and width is required.

Four Point Beam

Product Specifications
