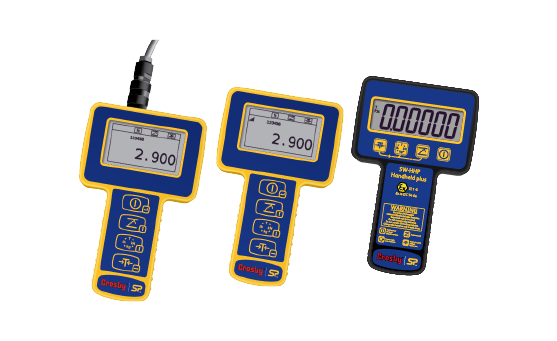

Handheld Plus

The Handheld plus is a rugged and versatile digital handheld display. It has an extensive range of features and is suitable for all Crosby | SP load cell products.

At the heart of the ergonomically designed Handheld plus is a powerful PCB providing industry leading features such as user selectable units of measure (tonnes, lbs, kg and kN), programmable audible overload alarm (HHP & SW-HHP), peak hold, pre-set tare and a user resettable (HHP & SW-HHP) overload counter.

This crucial overload alarm counter is a requirement for many safety and quality control departments, as it keeps track of overload events, allowing the load cell in question to be removed from service immediately, following the calibration voiding overload event. The load cell in question can then be sent out for proper testing and, if necessary, recalibration before re-entering service.

The HHP is suitable for connection via cable to any Straightpoint cabled load cell product and easily adapted to any other manufacturers’ load cell product with a mv/v output. In addition to the standard HHP the SW-HHP is suitable for connection to any Straightpoint wireless load cell, has a range of up to 1000m/3280ft (ATEX 700m/2300ft) and is supplied as standard with the Radiolink plus load cell.

Features and benefits:

  • Displays up to 4 load cells simultaneously
  • Wireless range 1000m or 3280ft
  • Low battery warning
  • Signal strength warning
  • Low battery warning
  • User settable 90db audible overload alarm
  • Multiple display units–tonnes, lbs, kg and kN
  • 200Hz Peak hold
Handheld plus specifications
Part Number HHP SW-HHP SW-HHP ATEX
Battery Type 2xAA 2XAA Energizer L91
Battery Life 100 hrs continuous 40 hrs continuous 60 Hours Continous
Display Type  240×128 Multi line dot matrix with backlight 6 Digit 25mm/1″ LCD
Operating Temp -10 to +50 °C / 14 to 122 ˚F -20 to +70 °C / -4 to 158 ˚F -10 to +50 °C / 14 to 122 ˚F
Display Rate 3Hz
Protection IP65 or NEMA 4X
Excitation 5v N/A N/A
Max Sensitivity 3mv/v N/A N/A
Max resolution 1:9999999(Normal Mode) 1:999999 (Normal Mode)
Connectivity 6-way Female Binder 723 Socket Wireless 2.4 GHz Wireless 2.4 GHz
