Product Features

  • Designed for heavy duty applications.
  • High tensile alloy steel plate reduces physical size and weight.
  • Counter balanced to hang level when empty.
  • Inside radius on hooks avoid coil edge contact.
  • Curved coil saddle is standard.
  • Guide handles for ease of hook positioning.
  • Handles a wide range of coil widths.
  • Available with optional padding for additional coil protection.
  • Complies with ASME standards.

Model 82 Heavy Duty Coil Hook

Product Specifications


Model 82 Specifactions
Model numbers shown in red are part of our QUICKSHIP program.

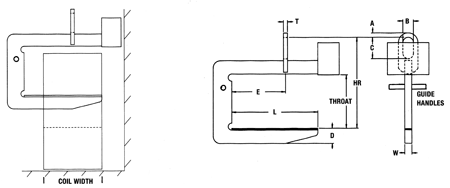

Model Number Capacity (tons) Max Width (in.) Min Width (in.) Throat L (in.) D (in.) W (in.) HR (in.) A (in.) B (in.) C (in.) T (in.) Weight (lbs)
82-5-36 5 36 24 24 30 5-5/16 4 37-3/8 1-1/2 4 7 1-1/4 420
82-5-48 5 48 30 24 39 6-1/8 4 38 1-1/2 4 7 1-1/4 584
82-5-60 5 60 36 24 48 6-9/16 4 38-1/2 1-1/2 4 7 1-1/4 680
82- 7 1/2-36 7-1/2 36 24 24 30 5-5/8 4 37-1/2 1-1/2 4 7 1-1/2 615
82-7 1/2-48 7-1/2 48 30 24 39 6-5/16 4 38-1/4 1-1/2 4 7 1-1/2 774
82-7 1/2-60 7-1/2 60 36 24 48 6-5/16 4 39 1-1/2 4 7 1-1/2 942
82-10-48 10 48 30 24 39 7-1/4 4 41-1/4 2 5 9 1-3/4 928
82-10-60 10 60 36 24 48 7-1/2 4 41-3/8 2 5 9 1-3/4 1295
82-10-72 10 72 42 24 57 7-1/4 4 42-1/2 2 5 9 1-3/4 1616
82-15-48 15 48 30 30 39 7-1/4 4 47-7/8 2 5 9 1-3/4 1450
82-15-60 15 60 36 30 48 8 4 48 2 5 9 1-3/4 1824
82-15-72 15 72 42 30 57 8-3/4 4 48-3/4 2 5 9 1-3/4 2227
82-20-60 20 60 36 30 48 9-1/8 4 52-1/8 2-1/4 6 12 2 2175
82-20-72 20 72 42 30 57 10 4 52-5/16 2-1/4 6 12 2 2625
82-25-60 25 60 36 34 48 9 4 57-3/4 2-1/2 6 14 2-1/4 2820
82-25-72 25 72 42 34 57 9-3/4 4 58-1/2 2-/12 6 14 2-1/4 3570
82-30-60 30 60 36 34 48 9-7/8 4 58-3/4 2-3/4 6 14 2-1/2 3180
82-30-72 30 72 42 34 57 10-5/8 4 59-3/8 2-3/4 6 14 2-1/2 3800
82-40-72 40 72 42 38 57 11 5 68 3-1/4 7 18 3 5350
82-50-84 50 84 48 40 64-1/2 13 6 71-7/8 3-3/4 7 18 3 7470
E dimension = 1/2 of the maximum coil width.
Other sizes available, consult factory.
