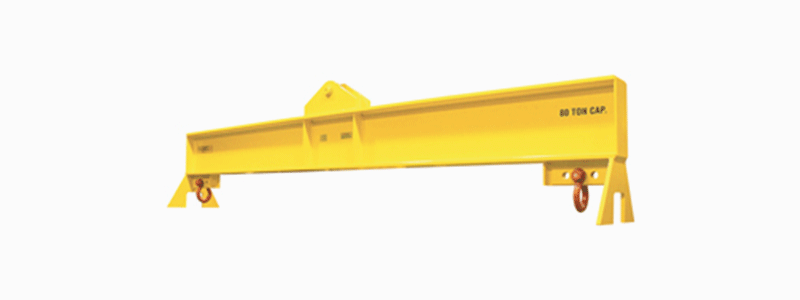

High-Capacity
Heavy-duty design and construction provide solutions in standard sizes for those demanding large capacity applications.
Product Features
- Heavy duty ‘I’ beam construction.
- Built in beam stands for easy storage.
- Pin bail to allow for quick attachment of large crane hook.
- Beams have three spreads for flexibility.
- Lifting shackles are standard.
- Complies with ASME standards.
Product Options
- Extra Holes or Different Placement of Holes

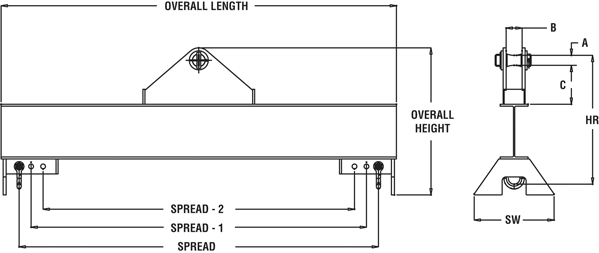

Product Specifications
| Model 20 Specifications | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model Number | Capacity (tons) | Spread (ft.) | Overall Width (in.) | HR (in.) | Overall Height (in.) | A (in.) | B (in.) | C (in.) | SW (in.) | Weight (lbs.) |
| 20HC-50-10 | 50 | 10 | 138 | 60.31 | 70.31 | 5 | 8 | 19.5 | 40 | 2881 |
| 20HC-50-15 | 50 | 15 | 198 | 60.73 | 70.73 | 5 | 8 | 19.5 | 40 | 3841 |
| 20HC-50-20 | 50 | 20 | 258 | 61.25 | 71.25 | 5 | 8 | 19.5 | 40 | 5161 |
| 20HC-65-10 | 65 | 10 | 138 | 61.38 | 70.51 | 5 | 8 | 19.5 | 40 | 3059 |
| 20HC-65-15 | 65 | 15 | 198 | 64.5 | 73.63 | 5 | 8 | 19.5 | 40 | 4117 |
| 20HC-65-20 | 65 | 20 | 258 | 67.8 | 76.93 | 5 | 8 | 19.5 | 40 | 5801 |
| 20HC-80-10 | 80 | 10 | 138 | 67.1 | 76.98 | 5.5 | 8 | 21.25 | 44 | 3663 |
| 20HC-80-15 | 80 | 15 | 198 | 70.21 | 80.09 | 5.5 | 8 | 21.25 | 44 | 4808 |
| 20HC-80-20 | 80 | 20 | 258 | 73.56 | 83.44 | 5.5 | 8 | 21.25 | 44 | 6674 |
