Product Features

  • Unique pivoting lower lugs allow for 75° to 90° lower rigging angle.
  • Capacities from 5 to 130 tons.
  • Beam only available in 7 – 10 days.

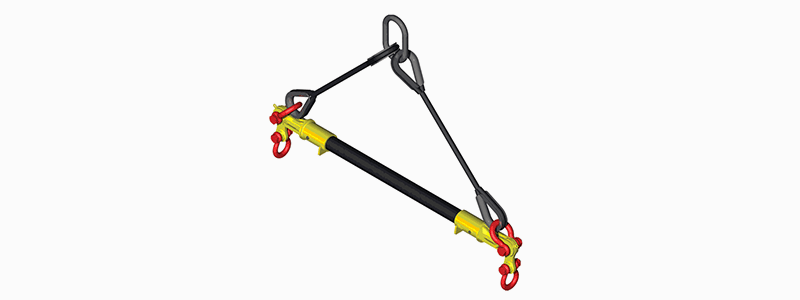

  • Optional wire rope top rigging available.
  • Complies with ASME standards.

Product Specifications

Model 30HC Specifications
Model numbers shown in red are part of our QUICKSHIP program.
Model Number Capacity (tons) Spread (ft.) Weight (lbs.)* HR at 45° (in.) HR at 60° (in.) Bottom Shackle (Ton BTAS) Top Shackle (Tons BTAS)
30HC-50-6 50 6 420  94 25 35
30HC-50-8 50 8 460  114 25 35
30HC-50-10 50 10 760 92 136 25 35
30HC-50-12 50 12 850 104 156 25 35
30HC-50-16 50 16 1020 128 198 25 35
30HC-50-20 50 20 1190 152 240 25 35
30HC-50-24 50 24 1370  282 25 35
30HC-50-28 50 28 1540  324 25 35
30HC-50-32 50 32 1710  364 25 35
30HC-50-36 50 36 3750 254 412 55 55
30HC-50-40 50 40 4010 278 454 55 55
30HC-60-8 60 8 840 84 120 55 55
30HC-60-10 60 10 920 96 140 55 55
30HC-60-12 60 12 1010 108 162 55 55
30HC-60-16 60 16 1190 132 204 55 55
30HC-60-20 60 20 1360  246 55 55
30HC-60-24 60 24 1530  286 55 55
30HC-60-28 60 28 1710  328 55 55
30HC-60-32 60 32 1880  370 55 55
30HC-60-36 60 36 3750 254 412 55 55
30HC-60-40 60 40 4100 278 454 55 55
30HC-70-8 70 8 840 84 120 55 55
30HC-70-10 70 10 920 96 140 55 55
30HC-70-12 70 12 1010  162 55 55
30HC-70-16 70 16 1190  204 55 55
30HC-70-20 70 20 2330 156 246 55 55
30HC-70-24 70 24 2690 180 286 55 55
30HC-70-28 70 28 3040 204 328 55 55
30HC-70-32 70 32 3400 230 370 55 55
30HC-70-36 70 36 3750 254 412 55 55
30HC-70-40 70 40 4100 278 454 55 55
30HC-80-8 80 8 840 84 120 55 55
30HC-80-10 80 10 920  140 55 55
30HC-80-12 80 12 1010  162 55 55
30HC-80-16 80 16 1190  204 55 55
30HC-80-20 80 20 2330 156 246 55 55
30HC-80-24 80 24 2690 180 286 55 55
30HC-80-28 80 28 3040 204 328 55 55
30HC-80-32 80 32 3400 230 370 55 55
30HC-80-36 80 36 3750 254 412 55 55
30HC-80-40 80 40 4100 278 452 55 55
30HC-90-8 90 8 1420 84 120 55 85
30HC-90-10 90 10 1600 96 140 55 85
30HC-90-12 90 12 1780 108 162 55 85
30HC-90-16 90 16 2130 132 204 55 85
30HC-90-20 90 20 2490 156 246 55 85
30HC-90-24 90 24 2840 180 286 55 85
30HC-90-28 90 28 3200 204 328 55 85
30HC-90-32 90 32 3550 230 370 55 85
30HC-90-36 90 36 3900 254 412 55 85
30HC-90-40 90 40 4260  452 55 85
30HC-100-8 100 8 1420 84 120 55 85
30HC-100-10 100 10 1600 96 140 55 85
30HC-100-12 100 12 1780 108 162 55 85
30HC-100-16 100 16 2130 132 204 55 85
30HC-100-20 100 20 2490 156 246 55 85
30HC-100-24 100 24 2840 180 286 55 85
30HC-100-28 100 28 3200 204 328 55 85
30HC-100-32 100 32 3550 230 370 55 85
30HC-100-36 100 36 3900  412 55 85
30HC-100-40 100 40 4260  452 55 85
30HC-110-8 110 8 1420 84 120 55 85
30HC-110-10 110 10 1600 96 140 55 85
30HC-110-12 110 12 1780 108 162 55 85
30HC-110-16 110 16 2130 132 204 55 85
30HC-110-20 110 20 2490 156 246 55 85
30HC-110-24 110 24 2840 180 286 55 85
30HC-110-28 110 28 3200 204 338 55 85
30HC-110-32 110 32 3550  370 55 85
30HC-110-36 110 36 3900  412 55 85
30HC-110-40 110 40 4260  452 55 85
30HC-120-8 120 8 1450 96 130 85 85
30HC-120-10 120 10 1620 108 152 85 85
30HC-120-12 120 12 1800 120 172 85 85
30HC-120-16 120 16 2150 144 216 85 85
30HC-120-20 120 20 2500 168 256 85 85
30HC-120-24 120 24 2860 192 298 85 85
30HC-120-28 120 28 3220  340 85 85
30HC-120-32 120 32 3570  380 85 85
30HC-120-36 120 36 3820  422 85 85
30HC-120-40 120 40 4280  462 85 85
30HC-130-8 130 8 1450 96 130 85 85
30HC-130-10 130 10 1620 108 152 85 85
30HC-130-12 130 12 1800 120 172 85 85
30HC-130-16 130 16 2150 144 216 85 85
30HC-130-20 130 20 2500 168 256 85 85
30HC-130-24 130 24 2860  298 85 85
30HC-130-28 130 28 3220  340 85 85
30HC-130-32 130 32 3570  380 85 85
30HC-130-36 130 36 3920  422 85 85
*Weight is beam only, does not include shackles or top rigging.
