Motorized Grab – Rotating Bail
Product Features
- Motorized leg drive maximizes the efficient handling of coils.
- Leg drive speed – 2.8” per second.
- Narrow aisle stacking maximizes coil storage floor space.
- Curved lifting pads for coil protection.
- High impact plastic toe rollers prevent lifter foot contact.
- Anti-clamp limit switch protects coil during closing of lifter.
- Heavy duty torque limiting drive protection during maximum open/closed conditions.
- Lockout limit switch prevents inadvertent leg opening during lift.
- Alloy steel pin bail.
- Easily replaceable slide wear guides.
- Design allows for easy maintenance access to drive components.
- Designed to operate on AC power supply.
- Motorized 350° rotation at approximately 2 RPM.
- Complies with ASME standards.

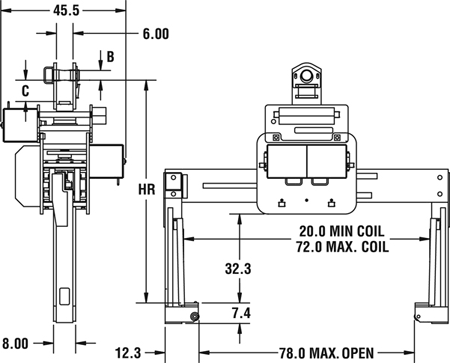

Product Specifications
| Model 85R Specifications | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model Number | Capacity (tons) | Min Coil Width (in.) | Max Coil Width (in.) | HR (in.) | Throat (in.) | B (in.) | C (in.) | Weight (lbs) |
| 85R-15-72 | 15 | 20 | 72 | 79-1/8 | 32 | 3 | 8 | 4200 |
| 85R-20-72 | 20 | 20 | 72 | 79-1/8 | 32 | 3 | 8 | 4300 |
| 85R-25-72 | 25 | 20 | 72 | 80-7/8 | 32 | 3-1/2 | 7-3/4 | 4800 |
| 85R-33-72 | 33 | 20 | 72 | 80-7/8 | 32 | 3-1/2 | 7-3/4 | 4700 |
|
Other sizes available, consult factory.
|
||||||||
