NEW – Beam Web Clamp
The solution for ANY lifting angle.
Designed to positively grip the center web of the I-beam, this clamp will handle the full rated capacity along any direction from the lifting eye.The clamp secures to the web of the I-beam,while the throat of the clamp pinches the flange during side loading for positive contact during lifting or suspending applications.

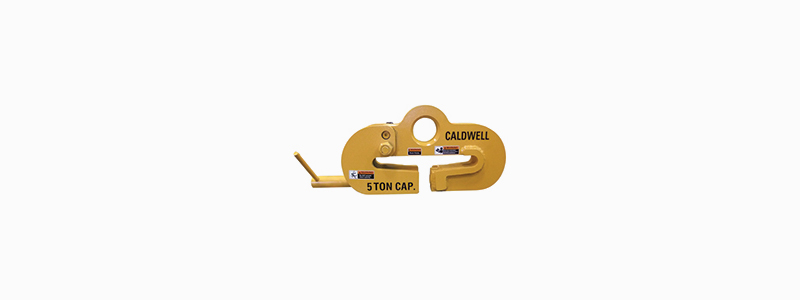

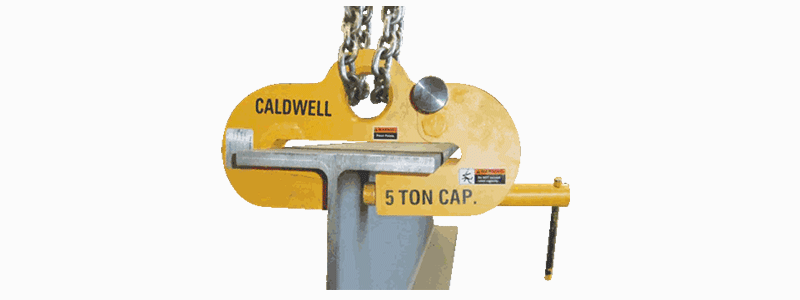

Model BWC-5 Close-up.

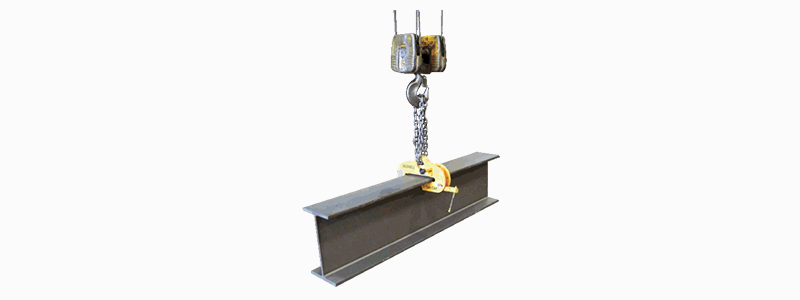

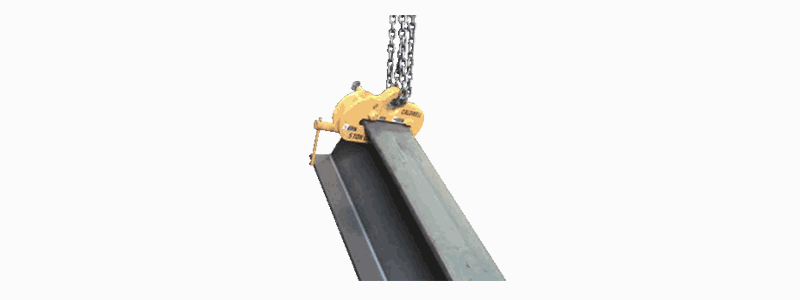

Model BWC-5 Application.
Product Features
- Designed to accommodate side load applications.
- Full rated capacity at any lifting angle.
- Low headroom design.
- Securely grips beam web and flange.
- Use for lifting or hanging.
- Complies with ASME B30.20 and BTH-1.
Product Specifications

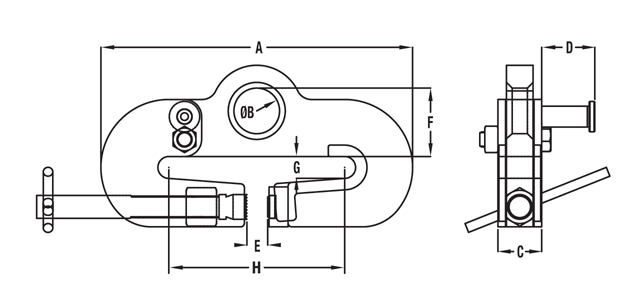

| Model BWC Specifications | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model Number | Rated Cap. (lbs) | A (in.) | B (in.) | C (in.) | D (in.) | E (in.) | F (in.) | G (in.) | H Min. (in.) | H Max. (in.) | Unit Weight (lbs.) |
| BWC-5 | 11,000 | 20.5 | 2.75 | 3 | 3.5 | 1.25 | 4.5 | 1 | 6 | 12 | 76 |
| BWC-10 | 22,000 | 20.5 | 2.75 | 3 | 3.5 | 1.25 | 4.5 | 1 | 6 | 12 | 76 |
| BWC-10W | 22,400 | 24.3 | 2.75 | 3 | 3.5 | 1.25 | 4.5 | 1 | 9 | 15.75 | 82 |
