Pancake Compression Load Cell

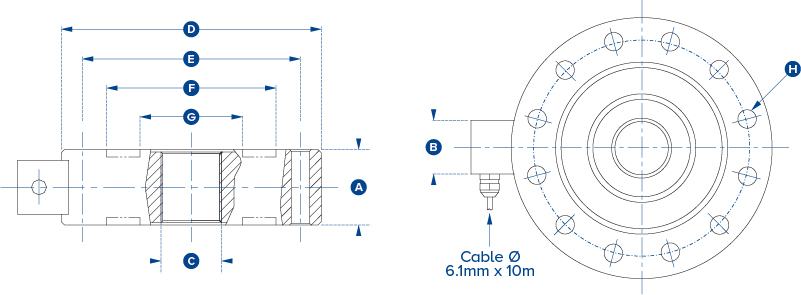

Dimensional Data

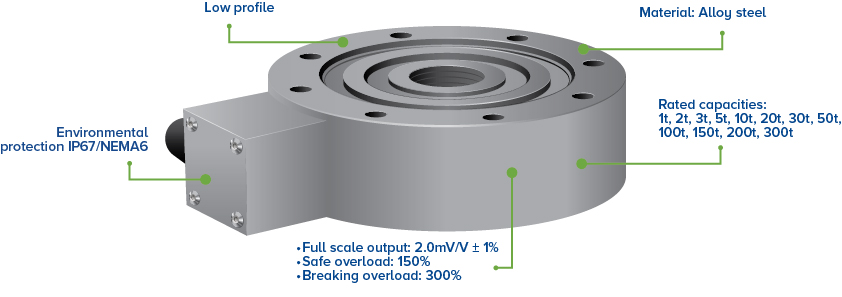

The SP pancake loadcell range provides a comprehensive force measurement solution for static and dynamic forces. It is ideal for a range of structural and industrial applications where space may be limited.

Constructed from nickel plated alloy steel it is manufactured with tapped holes allowing it to become an integral part of the structure they are load monitoring.

Frequently used for applications such as bolt tension monitoring, SPMT module weighing and OEM applications the SP pancake loadcell has rated capacities covering 1t to 300t with a safe overload of 150% and an ultimate strength of 300%.

Features:

  • Material: Alloy steel
  • Full scale output: 2.0mV/V ± 1%
  • Safe overload: 150%
  • Breaking overload: 300%
  • IP Rating: IP67 / NEMA 6
  • Low profile

Dimensional Data

Part Number 363YH-1t 363YH-2t 363YH-3t 363YH-5t 363YH-10t 363YH-20t 363YH-30t 363YH-50t 363YH-100t 363YH-150t 363YH-200t 363YH-300t
Approximate
Shipping Weight 		2.8kg 2.8kg 2.8kg 2.8kg 5.5kg 5.5kg 12.4kg 16.8kg 40.6kg 51kg 51kg 97.2kg
6.2lb 6.2lb 6.2lb 6.2lb 12.1lb 12.1lb 27.3lb 37lb 6.2lb 112.4lb 112.4lb 214.3lb
Full Scale Output 2.0 mV/V ± 1%
Zero Balance < ± 0.02 mV/V
Non-linearity Cap .≤ 5t: < ± 0.050%; Cap. ≥ 10t: < ± 0.30%
Repeatability Cap .≤ 5t: < ± 0.030%; Cap. ≥ 10t: < ± 0.20%
Hysteresis Error Cap .≤ 5t: < ± 0.050%; Cap. ≥ 10t: < ± 0.30%
Creep in 30 min. Cap .≤ 5t: < ± 0.050%; Cap. ≥ 10t: < ± 0.10%
Input Resistance 7700 ± 30
Output Resistance 7700 ± 5
Element Material Alloy Steel, Nickel Plated
Rec. Excitation 10V (15V Maximum)
Insulation Resist. >2 [50V DC] G 0
Comp. Temp. Range -10°C to +50°C / +14°F to 122°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type / IP Rating Welded Seal / IP67
Cable Colour Code Exc+ Red, Exc- Black, Sig+ Green, Sig- White, Shield Bare
Rated Capacity 1t – 5t 10t – 20t 30t 50t 100t 150t – 200t 300t
Dimension A 35 45 58 64 90 120 180
1.38” 1.77” 2.28” 2.52” 3.54” 4.72” 7.09”
Dimension B 32 32 32 32 48 48 48
1.26” 1.26” 1.26” 1.26” 1.89” 1.89” 1.89”
Dimension C M24 x 2 M36 x 2 M42 x 2 M42 x 2 M70 x 3 M90 x 3 M120 x 3
M24 x 2 M36 x 2 M42 x 2 M42 x 2 M70 x 3 M90 x 3 M120 x 3
Dimension D 113 155 180 205 280 296 346
4.45” 6.10” 7.09” 8.07” 11.02” 11.65” 13.62”
Dimension E 97 130 150 165 228 256 282
3.82” 5.12” 5.91” 6.50” 8.98” 10.08” 11.10”
Dimension F 81 106 125 125 182 223 242
3.19” 4.17” 4.92” 4.92” 7.17” 8.78” 9.53”
Dimension G 37 56 75 75 118 133 174
1.46” 2.20” 2.95” 2.95” 4.65” 5.24” 6.85”
Dimension H 7 11 13 13 17 22 26
0.28” 0.43” 0.51” 0.51” 0.67” 0.87” 1.02”
