Product Features

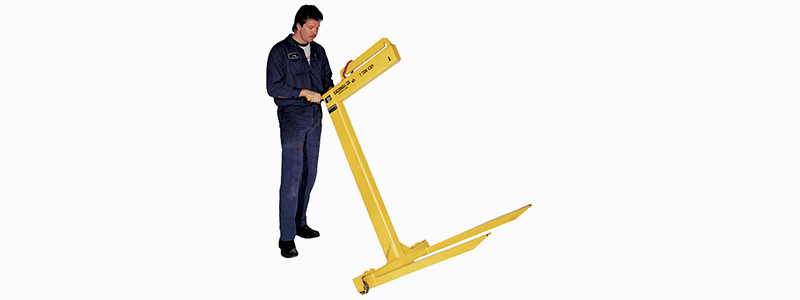

  • Wheels allow for movement of unit without crane.
  • Dual lift points eliminates need for counterweight.
  • Extremely lightweight for ease of handling.
  • Complies with ASME standards.

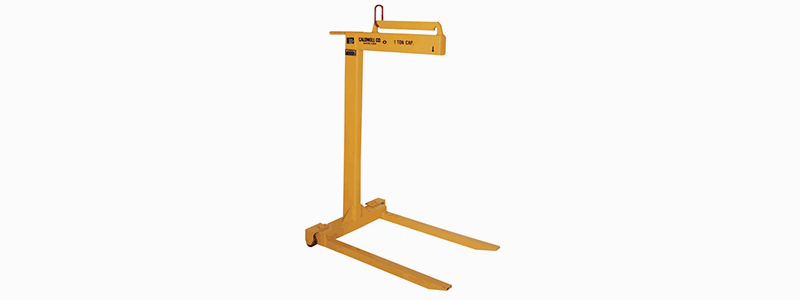

Model 93W
The model 93W being used to lift a load from an upper level manufacturing area to the lower shipping bay.

Product Specifications

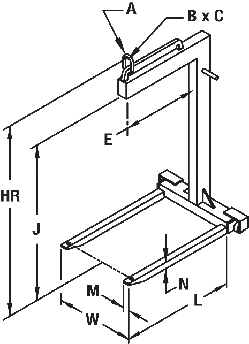

Model 93W Specifications
Model numbers shown in red are part of our QUICKSHIP program.
Model Number Capacity (tons) L (in.) M (in.) N (in.) W (in.) E (in.) A (in.) B (in.) C (in.) J (in.) HR (in.) Weight (lbs)
93W-1-48 1 36 2 2 25 24 1/2 2-1/2 3-3/4 48 60 245
93W-2-48 2 36 4 2 25 24 3/4 2-3/4 4-/12 48 62 405
