Uni-loc Cable Laid Slings

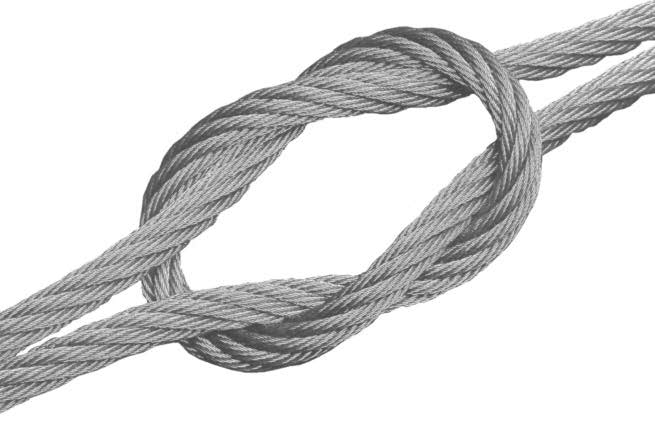

Cable Laid Slings are constructed from 7 individual galvanized ropes “cabled” together. This makes a very flexible sling for special applications.

Manufactured with UNI-LOC® Flemish Eye Splice.

Design Factor is 5:1 for the Sling WLL in tons of 2000 lbs.

Rated Capacity – Working Load Limit (WLL) at DF 5:1
Values shown are in tons of 2000 lbs and are based on 6-strand wire rope with a steel core (IWRC)
Note: WLL’s are based on the “Wire Rope Users Manual” published by the Wire Rope Technical Board, USA.

Sling
dia.
inch
Eye
length
L x W
WLL tons WLL tons at WLL tons at WLL tons at
Vert.(1) Choker(2) 60° 45° 30° 60° 45° 30° 60° 45° 30°
1/2(3) 8 x 4 1.9 1.3 3.2 2.6 1.9 6.4 5.2 3.8 2.2 1.8 1.3
5/8(3) 10 x 5 2.8 1.9 4.8 3.9 2.8 9.6 7.8 5.6 3.4 2.7 1.9
3/4(4) 12 x 6 4.1 2.8 7.0 5.8 4.1 14 11.6 8.2 4.9 4.0 2.8
7/8(4) 14 x 7 5.4 3.8 9.3 7.6 5.4 18.6 15.2 10.8 6.5 5.3 3.8
1(4) 16 x 8 6.9 4.8 12 9.7 6.9 24 19.4 13.8 8.3 6.8 4.8
1-1/8(4) 18 x 9 8.3 5.8 14 12 8.3 28 24 16.6 10 8.2 5.8
1-1/4(4) 20 x 10 9.9 6.9 17 14 9.9 34 28 19.8 12 9.8 6.9

1 Rated Capacities are based on a D/d ratio of >5:1 for the body and sling eye.
2 Rated Capacity are based on a D/d ratio of >5:1 for the body of the sling and eye and choking angle greater than 135˚. See page
D/d Ratio and the Effect on Sling Capacity, Choker Hitches and Design Factor and Sling Tags for details.
3 Cable Construction 7 x 7 x 7.
4 Cable Construction 7 x 7 x 19.

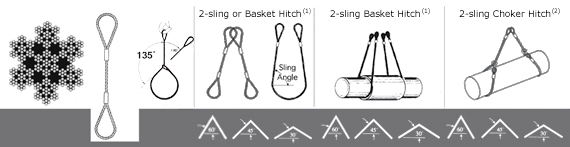

ALL sling angles refer to the HORIZONTAL angle. See page Centre of Gravity (CG) and Sling Angles and Angularity Factors for details.
