These hooks are a positioning device and are not intended to rotate under load. Remember, NEVER let a sling rotate under load unless you use NON-ROTATING UNI-LOC® wire rope slings

All UNI-LOC® wire rope slings equipped with Swivel Eye Hooks are supplied with Standard Stainless Latches.

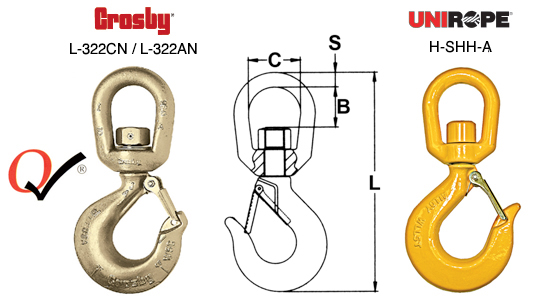

Dimensions (inch) for CROSBY and UNIROPE Swivel Eye Hooks
Crosby Hook Size
WLL tons		 L C B S Unirope
Hook
Size		 L C B S lbs
each
1 A .75 C 5.66 1.25 .82 .38 1 A 5.66 1.25 .82 .38 .75
1.5 A 1 C 6.71 1.50 1.31 .50 1.5 A 6.71 1.50 1.31 .50 1.25
2 A 1.5 C 7.75 1.75 1.50 .63 2 A 7.75 1.75 1.50 .63 2.25
3 A 2 C 8.25 1.75 1.50 .63 3 A 8.25 1.75 1.50 .63 2.30
5 A 3 C 6.69 2.00 1.64 .75 5 A 6.69 2.00 1.64 .75 4.96
7 A 5 C 12.47 2.50 2.29 1.00 7 A 12.47 2.50 2.29 1.00 10.29
11 A 7.5 C 14.75 2.75 2.44 1.13 11 A 14.75 2.75 2.44 1.13 19.40
15 A 10 C 16.40 3.12 2.48 1.25 15 A 16.40 3.12 2.48 1.25 23.25
22 A 15 C 21.34 4.10 3.76 1.50 22 A 21.34 4.10 3.76 1.50 47.00
30 A — 23.25 4.10 3.76 1.50 — — — — — 70.50
Note:
All dimesions are approximate. If critical please call for verification.
(1) Type N 320 30 ton hook does NOT come with pre-drilled hook tips.
