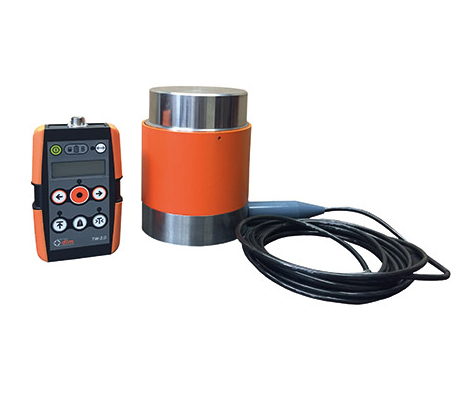

Large Compressive Load Cell, CCLG-2.0 10 – 300 tonnes

DLM’s range of Large Compressive Load Cells can be used independently or in combinations as part of weighing platforms. The large range is available from 100t to 300t and manufactured using high grade stainless steel, making these Load Cells particularly suited to rugged environments and hire industry amongst others. Other sized compressive can be designed upon request.

Features:

  • Small, compact and portable design
  • Optional load saddle
  • Stainless steel construction
  • Light weight

Applications:

  • Tank weighing
  • Hydraulic lifting operations
  • Vessel weighing
  • Certification

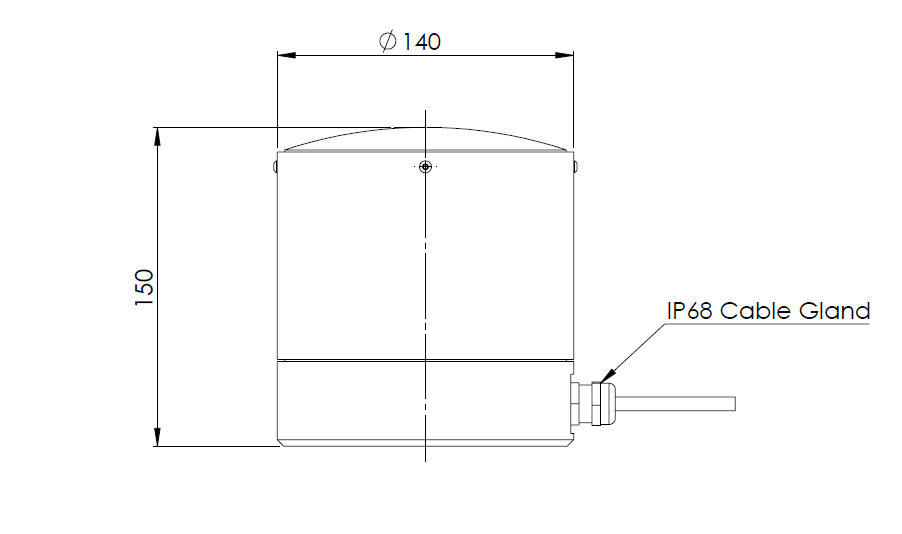

Dimensional Data

Load Capacity (tonnes) Part Number Accuracy % FRO Proof Test % SWL Weight (kg) Resolution (kg)
100 0001 – 1083 ±0.5 150 14 100
150 0001 – 1084 ±0.5 225 14 100
200 0001 – 1085 ±0.5 300 14 100
300 0001 – 1086 ±0.5 450 14 100
Specifications
Loadcell Material 17- 4PH Stainless Steel
Bridge Resistance 700Ω
Operating Temperature range -10°C to +60°C
Compatible Display Units TW-2.0-S/ Custom display
Cable 10m signal cable standard (increased lengths available on request)
Mil Spec/RM12 connector termination
Calibration Supplied with calibration, proof load and test certificates to BS EN 10002/2 1992
Packaging Packaged in rugged Storm/Peli watertight case

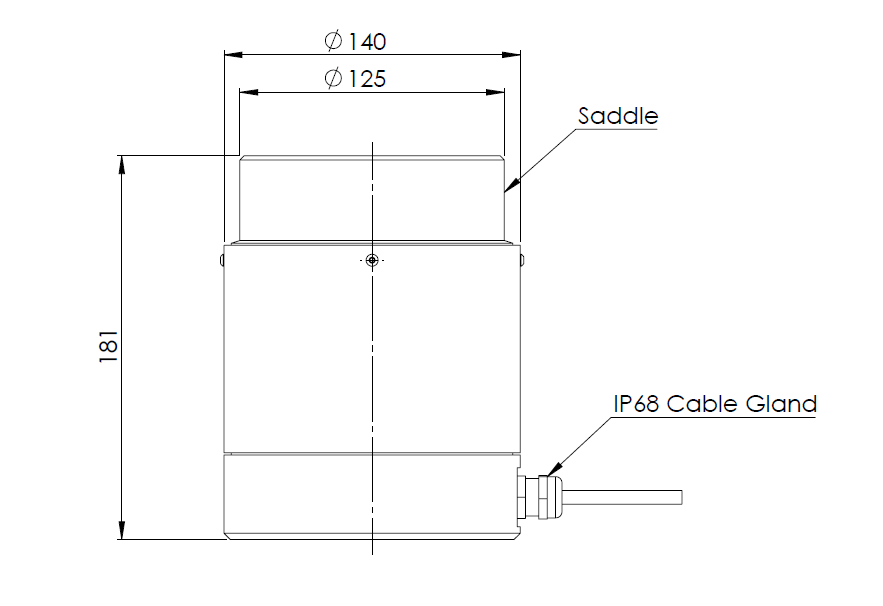

Optional Extras Load Saddle part number: 0001 – 1227
