Concrete Pressure Tong

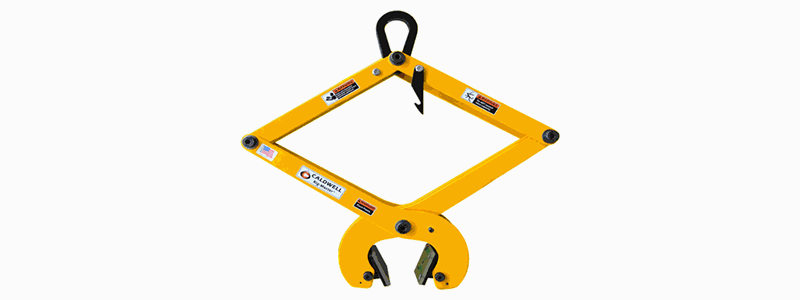

Model 172 - Concrete Pressure Tong with Urethane Pads shown.
Product Features
- Designed for handling cured concrete products.
- Automatically adjusts to the load size.
- Easy to release manual latch.
- Pivoting pads align with load surface for proper contact.
- Polyurethane pads grip surface without damage.
- Complies with ASME standards.
Product Specifications
| Model 172 Specifications | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model numbers shown in green are part of our INSTOCK program. | ||||||||

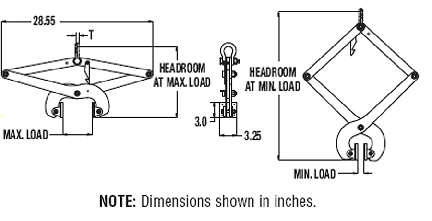

| Model Number | Rated Capacity (lbs.) | Load Width Min. - Max. (in.) | Overall Width Min. - Max. (in.) | HR Min. - Max. (in.) | A (in.) | B (in.) | C (in.) | Weight (lbs.) |
| 172-1/4 | 550 | 1-3/16 - 5-1/2 | 21.8 - 28.8 | 13.5 - 29.5 | 11/16 | 1-11/16 | 2 | 11/16 |
| 172-1/2 | 1100 | 1-13/16 - 5-1/2 | 21.8 - 28.8 | 13.5 - 29.5 | 3/4 | 2 | 3-3/8 | 43 |
