Concrete Pressure Tong

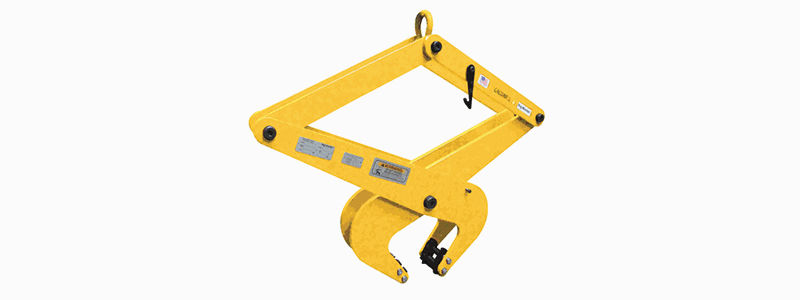

Model 173 - Concrete Pressure Tong with Grip Teeth shown.
Product Features
- Designed for handling cured concrete products.
- Automatically adjusts to the load size.
- Easy to release manual latch.
- Serrated steel cams securely grip the load.
- Rotate gripping cams for longer field life.
- Pads can be rotated for longer field life.
- Complies with ASME standards
Product Specifications
| Model 173 Specifications | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model numbers shown in green are part of our INSTOCK program. | ||||||||
| Model Number | Rated Capacity (lbs.) | Load Width Min. - Max. (in.) | Overall Width Min. - Max. (in.) | HR Min - Max (in.) | A (in.) | B (in.) | C (in.) | Weight (lbs.) |
| 173-1/4 | 550 | 1-3/16 - 6-5/16 | 21.8 - 28.8 | 13.5 - 29.5 | 11/16 | 1-11/16 | 2 | 24.5 |
| 173-1/2 | 1100 | 1-3/16 - 6-5/16 | 21.8 - 28.8 | 13.5 - 29.5 | 3/4 | 2 | 3-3/8 | 42.5 |
| 173-1 | 2200 | 2-3/8 - 7-3/32 | 32.6 - 36.6 | 16.7 - 29.5 | 11/16 | 1-11/16 | 2-3/8 | 93 |
