Load Pin, 0.5-1500 tonnes

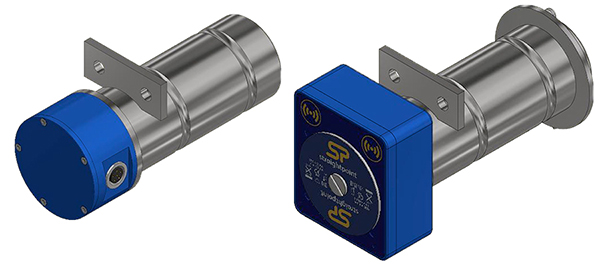

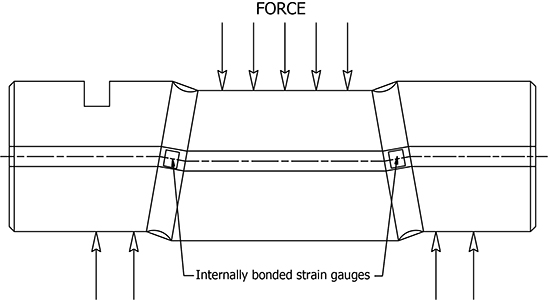

The Straightpoint range of Load Measurement Pins (LMP’s) are designed for use in applications where an end of line load cell cannot be used, meaning an integrated solution is required.

Often a customised solution, they are manufactured from high tensile stainless steel and are normally supplied complete with an anti-rotation plate as a cabled or wireless solution.

Built to withstand the harshest environments in industries such as marine and offshore oil and gas, they are suitable for use in exposed situations and can also be supplied to withstand immersion in seawater at extreme depths.

Straight-point Loadpins are typically connected to Straight-point’s Handheld plus, or may be supplied with a vast array of output formats. These include mV/V, RS-422, RS-485, utilizing the ASCII, MODBUS RTU and CAN-BUS protocols or an analogue output such as 4-20mA for PLC integration. All are also supplied with a 10 metre or 32ft cable as standard, however, usable cable length varies greatly with lengths available to 1500 metres or 4900ft, depending on output format.

Please email your enquiry to: sales@straightpoint.com

Features:

  • Rugged design
  • Ability to transmit to multiple hand held displays
  • 2.4Ghz licence free frequency
  • 800m range line of sight
  • Stainless steel construction
  • Low headroom when rigged
  • Supplied with load centering bobbin
  • Remote power on/off feature
  • Sleep mode for battery conservation

Dimensional Data



Standard Loadpin specifications
Part Number LP500KG LP1T LP2.5T LP3.5T LP6.5T LP15T LP25T LP50T LP100T LP250T LP500T LP750T LP1000T LP1500T
Capacity  500kg 1000kg 2.5te 3.5te 6.5te 15te 25te 50te 100te 250te 500te 750te 1000te 1500te
1100lbs 2200lbs 5500lbs 7700lbs 14,000lbs 33,000lbs 55,000lbs 110,000lbs 220,000lbs 550,000lbs 110,0000lbs 165,0000lbs 220,0000lbs 330,0000lbs
Resolution  0.2kg 0.5kg 0.001te 0.001te 0.002te 0.002te 0.005te 0.01te 0.05te 0.1te 0.2te 0.2te 0.5te 0.5te
0.5lb 1lb 2lb 2lb 5lb 5lb 10lb 20lb 100lb 200lb 500lb 500lb 1000lb 1000lb
Weight  0.9kg 1kg 1.2kg 1.4kg 2kg 3.1kg 5.6kg 8.6kg 11.8kg 29.8kg 79.2kg 146kg 275kg 389kg
0.4lb 0.5lb 0.9lb 1.3lb 2.6lb 5lb 10.3lb 18lb 24lb 64lb 172lb 319lb 603lb 854lb
Units kgs,tonnes
Protection IP67 (IP68 available as option)
Safety Factor 300% of SWL
Operating Temperature  -20 to +70 °C
-4 to 158˚F
Accuracy ±1% full scale
Dim A  24 35 45 50 63 75 89 102 110 130 225 295 360 430
0.94 1.38 1.77 1.97 2.48 2.95 3.50 4.02 4.33 5.12 8.86 11.61 14.17 16.93
Dim B  36 49 70 75 95 114 152 178 190 220 370 500 612 731
1.42 1.93 2.76 2.95 3.74 4.49 5.98 7.01 7.48 8.66 14.57 19.69 24.09 28.78
Dim C  70 80 100 105 125 150 195 225 230 300 440 590 712 832
2.76 3.15 3.94 4.13 4.92 5.91 7.68 8.86 9.06 11.81 17.32 23.23 28.03 32.76
Dim ØD  20 20 25 30 40 50 63 75 88 125 170 200 250 275
0.79 0.79 0.98 1.18 1.57 1.97 2.48 2.95 3.46 4.92 6.69 7.87 9.84 10.83
