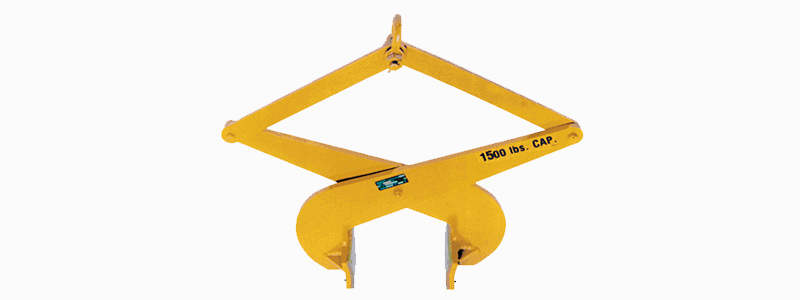

Product Features

  • Designed for lifting dry slabs of concrete, stone, or metal that must be protected from scratching or marring.
  • Use in construction work to position slabs.
  • The curved pads give proper contact for gripping smooth surfaces and handling a large range of sizes.
  • Polyurethane gripping surfaces are standard.
  • A manual latch is standard and locks the tong arms for easy placement on the load.
  • Complies with ASME standards.

Product Specifications

Model ST Specifications
Model numbers shown in green are part of our INSTOCK program.
Model Number Rated Capacity (lbs.) Load Width Min. - Max. (in.) HR Min. - Max. (in.) Weight (lbs.)
71-0 1000 1 - 6 31.30 - 39.58 65
71-1 1000 6 - 10 35.06 - 43.00 75
71-2 1500 8 - 12 29.18 - 38.06 85
71-3 1500 10 -14 31.43 - 42.00 145
71-4 1500 14 - 18 41.38 - 51.25 145
71-5 1500 18 - 22 48.90 - 60.00 150
