Telemetry Load Pin TLP-2.0 1-2000 tonnes

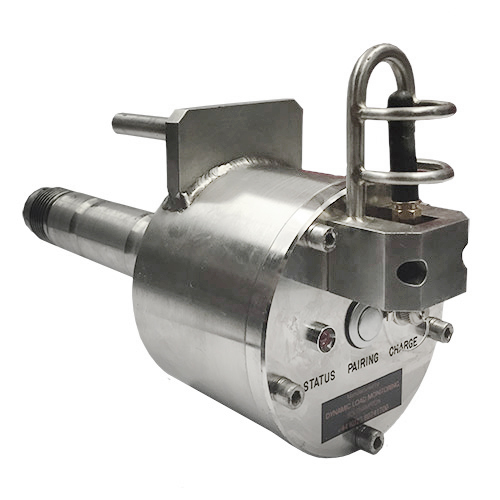

The DLM Telemetry Load Pin utilises DLM’s proprietary wireless electronics in order to read and transmit a load wirelessly to a hand held display or system base station. Manufactured from high tensile 17-4PH H1150D Stainless steel fully traceable from European mills, the DLM Telemetry Load Pin is particular suited to environments where cables cannot be easily run and allows for easy and quick installation.

The Telemetry Load Pin can be supplied designed by DLM engineers to meet clients exacting requirements and each design is proven with a full FEA analysis. The wireless transmission employed makes use of the license free 2.4GHz band and boast a 200m wireless range.

Key Features:

  • Stainless steel construction
  • Minimum of 5:1 safety factor
  • 200m wireless range
  • Connect multiple Load Pins to one display wirelessly
  • Rechargeable internal batteries

Applications:

  • Cranes
  • Container weighing
  • Port equipment
  • Offshore mooring buoys

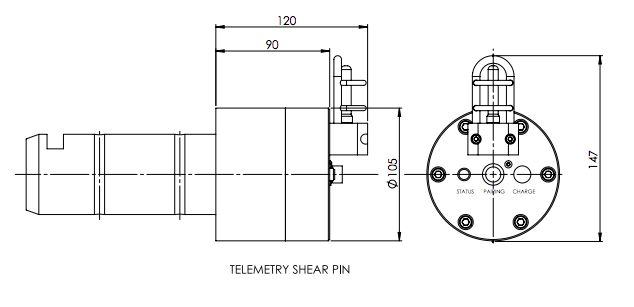

Dimensional Data

Specifications
Pin Material 17/4PH H1150 + 1150 stainless steel
Bridge Resistance 350Ω – 1000Ω
Accuracy <±1.0% FRO
Load ratings 1-2000t
Operating Temperature -20°C to +70°C
Internal battery 2 x 1.25V Nicad or NiMH rechargeable
Battery Life 700 hours continuous (6 months non operational
Charger Supplied with universal smart charger
Protection IP66 with charging socket cap fitted
Display Hand held TW-2.0-T / Custom display with TW-2.0-T receiver embedded
Frequency 2.4GHz
Range Up to 200m line of sight in ambient conditions
Locking and fixing arrangements Keeper slot and lock plate / Anti-rotation bracket / Thread and nut with split pin / Welded bracket
Certification Calibration, proof load and test certificates to BS EN 10002/2 1992 / material certification to 3.1 or 3.2 upon request
