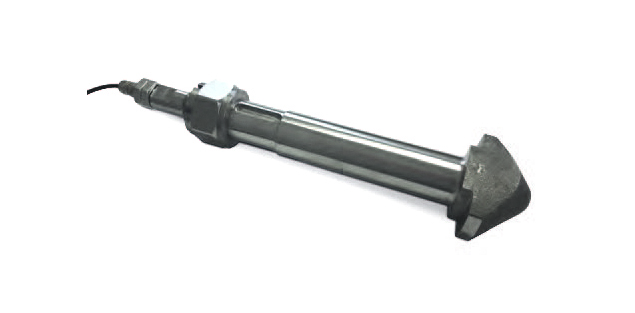

Twistlock Load Cell, TWL-2.0 d+
The Twistlock Load Cell has been designed and manufactured for use in all container lifting applications which utilize Twistlocks. The design is such that the load reading is taken from within the twistlock meaning there are no mechanical losses within the system.
The Twistlock Load Cell is based on existing dimensions for container plant equipment and is supplied with all the required components to integrate into existing equipment from suppliers including Kalmar, Bromma, Stinnis and more. This means the Twistlock Load Cell can be integrated without major re-design to equipment and can be installed and maintained by existing trained technicians.
Providing accurate and repeatable readings the Twistlock Load Cells can be implemented in sets of 4 or 8 and when used in conjunction with the Container Monitoring System they will provide accurate Verified Gross Mass (VGM) readings, centre of gravity position, usage reports and integration to TOS systems.
Key Features:
- 15T safe working load
- 30T proof load
- 6:1 safety factor
Applications:
- Straddle carriers
- Reach stackers
- Ship-to-shore cranes
- Ocean and rail freight
Specifications & Technical Data
Specifications | |
Part number: 0001 – 1118 | |
Twistlock | |
SWL | 15T |
Proof Load | 30T |
Safety Factor | 6:1 |
MPI Tested | Yes |

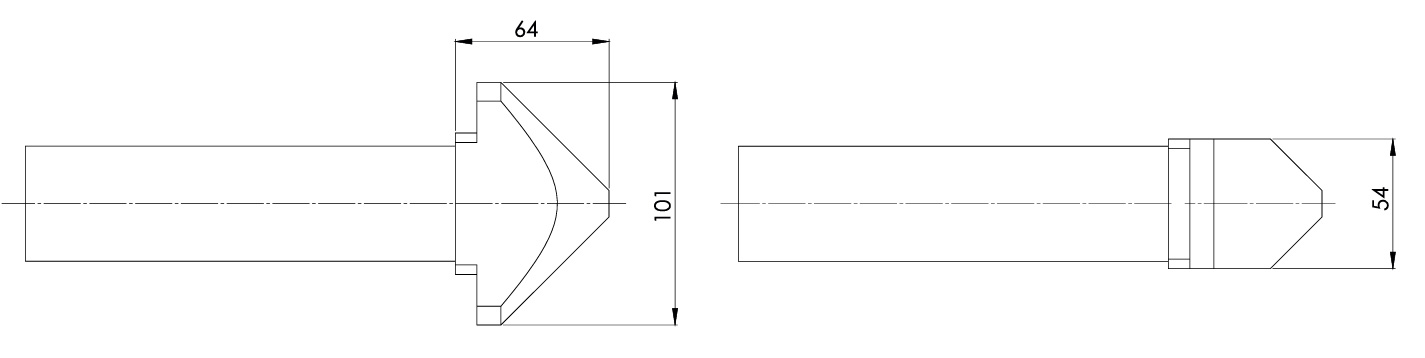

Dimensions | Depends on OEM |
Load Cell | |
SWL | 15T |
Proof Load | 150% |
Accuracy: | <1% FRO |
Output | 4-20mA, 0-10V, RS485 Modbus, CANBUS and more |
