LoadSafe WNI, 5 – 1000 tonnes

Manufactured in ranges from 5t to 500t – other capacities available on application.

No longer hindered by troublesome and hard to maintain cables, large-scale projects can now be completed in a fraction of the time previously required. Multiple compression load cells can all connect wirelessly to INSIGHT via a USB dongle, their iOS or Android app (If Bluetooth), or their SW-HHP wireless handheld display.

Maintenance and repair costs are all but eliminated due to the absence of cables and connectors. The flexibility of the product opens the door to a large number of applications in the heavy lift, energy, defense, rigging, shipping, and general transportation sectors.

Two versions of the WNI are available:
– Long range 2.4GHz version providing industry leadingwireless range to Crosby | Straightpoint’s SW-HHP handheldor INSIGHT.

– Bluetooth output and can be connected to any smart phonerunning our free HHP app on iOS or Android, at ranges up to100m or 328ft.

Connected to Crosby | Straightpoint’s INSIGHT, the WNI load cell can be used to weigh and verify centre of gravity of large and heavy objects, which may not be evenly proportioned. The system will report weight on each individual load cell, total weight and C-of-G in an HTML report based on ISO19901.

Crosby | Straightpoint’s LoadSafe is machined from high grade 17-4PH stainless steel, providing excellent strength andcorrosion resistance, which makes them suitable for the mostarduous industrial conditions.

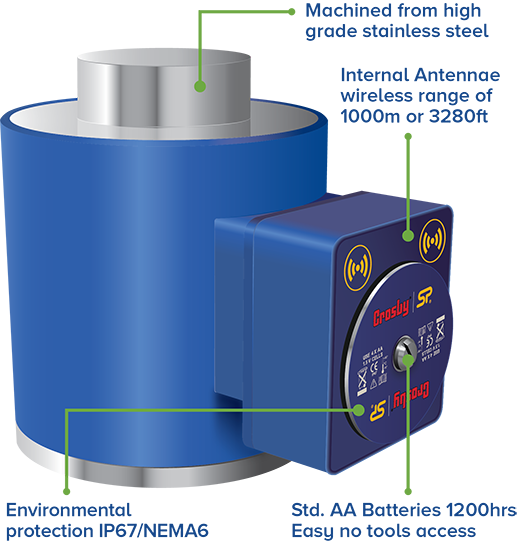

Features:

  • Proprietary 2.4 GHz wireless
  • Accuracy of ±0.1% FS
  • Environmentally sealed to IP67 or NEMA6
  • Stocked capacities up to 1000t
  • Industry leading wireless range up to1000m or 3280ft
  • Internal antennae
  • ATEX & IECEx version for hazardousarea zones 0, 1 & 2 available
  • Battery life of 1200hrs
  • Compact size
  • Remote On-Off from handheld display or software
  • Design validated by F.E.A.
  • Bluetooth option is available and is suppliedwith a free HHP App for iOS and Android

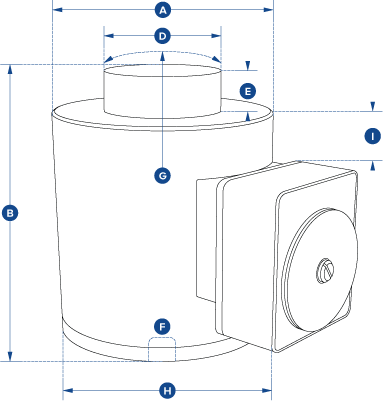

Dimensional Data

Compression load cell specifications
Part Number WNI5TC WNI10TC WNI25TC WNI50TC WNI100TC WNI150TC WNI300TC WNI500TC WNI1000TC
Capacity  5te 10te 25te 50te 100te 150te 300te 500te 1000te
11,000lb 22,000lb 55,000lb 110,000lb 220,000lb 330,000lb 660,000lb 110,0000lbs 2200000lbs
Resolution  0.001te 0.002te 0.005te 0.01te 0.05te 0.05te 0.1te 0.2te 0.5te
2lb 5lb 10lb 20lb 100lb 100lb 200lb 500lb 1000lb
Units  tonne
lbs
Weight  6.2kg 6.2kg 6.2kg 6.2kg 15.5kg 15.5kg 65kg 65kg 172kg
13.64lb 13.64lb 13.64lb 13.64lb 34lb 34lb 143lb 143lb 379lb
Safety Factor 3:1
Battery Type Loadcell 4 x AA Alkaline
Battery Life Loadcell 1200hrs continuous
Operating Temp  -10 to +50 °C
14 to 122˚F
Accuracy ±0.1% full scale
Frequency 2.4GHz
Range  1000 metres (100m if Bluetooth)
3280 feet  (328ft if Bluetooth)
Data Rate 3Hz ( Configurable to 200 Hz)
Protection IP67
NEMA 6
Dimension  ØA  100 100 100 100 152 152 185 185 362
3.94 3.94 3.94 3.94 5.98 5.98 7.28 7.28 14.25
Dimension B  127 127 127 127 184 184 300 300 310
5.00 5.00 5.00 5.00 7.24 7.24 11.81 11.81 12.20
Dimension ØD  59 59 59 59 80 80 155 155 270
2.32 2.32 2.32 2.32 3.15 3.15 6.10 6.10 10.63
Dimension E  16 16 16 16 26 26 27.5 27.5 40
0.63 0.63 0.63 0.63 1.02 1.02 1.08 1.08 1.57
Dimension F  M18 x 2.5 M18 x 2.5 M18 x 2.5 M20 x 2.5 M20 x 2.5 M20 x 2.5 M20 x 2.5 M20 x 2.5 M30x3.5
M18 x 2.5 M18 x 2.5 M18 x 2.5 M20 x 2.5 M20 x 2.5 M20 x 2.5 M20 x 2.5 M20 x 2.5 M30x3.5
Dimension G  152 152 152 152 432 432 432 432 950
5.98 5.98 5.98 5.98 17.01 17.01 17.01 17.01 37.40
Dimension H  158 158 158 158 208 208 241 241 422
6.22 6.22 6.22 6.22 8.19 8.19 9.49 9.49 16.61
Dimension I  22 22 22 22 33 33 49 49 102
0.87 0.87 0.87 0.87 1.30 1.30 1.93 1.93 4.02
