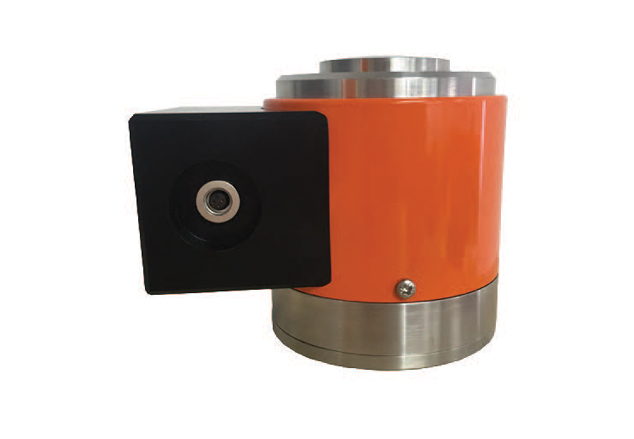

Wireless Compression Load Cells

DLM’s Wireless Compressive Load Cells can be used independently or in combination as part of weighing platforms. They range from 10t to 300t and manufactured using high grade stainless steel, making these load cells particulary suited to rugged environments and the hire industry amongst others. Other sized compressives can be designed upon request.

Features:

  • 2.4GHz license free signal
  • Wireless connection with hand held display or custom display
  • Compact design

Dimensional Data

Load Capacity (Tonnes) Description Part Number Accuracy %FRO Proof Test % Load Capacity Weight (kg) Resolution (kg)
10 Dome Saddle 0001 – 1242 <±0.5 150 4.5 10
20 Dome Saddle 0001 – 1243 <±0.5 150 4.5 10
30 Dome Saddle 0001 – 1244 <±0.5 150 4.5 10
50 Dome Saddle 0001 – 1245 <±0.5 150 4.5 10
100 Dome Saddle 0001 – 1246 <±0.5 150 14 100
150 Dome Saddle 0001 – 1247 <±0.5 150 14 100
200 Dome Saddle 0001 – 1248 <±0.5 150 14 100
300 Specification Dome Saddle 0001 – 1249 <±0.5 150 14 100
Specifications
Battery: 2 x 1.25V NiCad or NiMH rechargeable
Battery Life: 700 hours continuous (2 years non operational)
Charger: Supplied with universal smart charger
Operating Temperature: -20°C to +60°C
Frequency: 2.4GHz
Range: Up to 200m line of sight in ambient conditions
Load-cell Material: Stainless steel
Bridge Resistance: 700Ω
Saddle Options: Dome saddle / Tilting saddle
Operating Temperature range: -10°C to +60°C
Compatible With: Wireless hand held display / Custom built display / Centre of gravity display Calibration: Supplied with calibration, proof load and test certificates to BS EN 10002/2 1992
Packaging: Packaged in rugged storm/peli watertight case.
Optional extras: 100-300t load saddle. Part number 0001-1227
