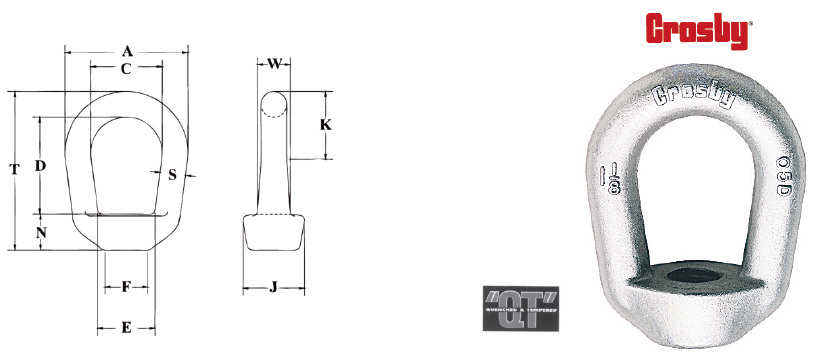

Dimensions (inch) for Eye Nut G-400, galv.

Size
No.		 Stock
Size
(in)		 WLL
lbs		 Std. Tap
Size
inch		 a c d e f j k n t w lbs
each
1 .25 520 1/4 1.25 .75 1.00 .75 .50 .69 .63 .38 1.72 .31 .09
2 .31 1250 3/8 1.62 1.00 1.20 .83 .56 .81 .89 .50 2.09 .41 .17
3A .38 2250 1/2 2.00 1.25 1.44 1.08 .81 1.00 1.09 .62 2.55 .50 .28
4 .50 3600 5/8 2.50 1.50 1.92 1.35 1.00 1.31 1.31 .69 3.25 .69 .60
5 .63 5200 3/4 3.00 1.75 2.38 1.59 1.12 1.50 1.57 .88 3.89 .84 1.00
6 .75 7200 7/8 3.50 2.00 2.63 1.96 1.38 1.88 1.77 .94 4.32 1.00 1.65
7 .88 10000 1 4.00 2.25 3.06 2.21 1.56 2.13 2.02 1.07 5.01 1.19 2.69
8 1.00 15500 1-1/4 4.50 2.50 3.50 2.46 1.88 2.38 2.27 1.25 5.78 1.38 4.38
9 1.13 18500 1-3/8 5.00 2.75 4.00 2.69 2.00 2.56 2.53 1.38 6.51 1.50 5.00
10 1.25 22500 1-1/2 5.62 3.12 4.31 3.09 2.25 3.00 2.82 1.50 7.06 1.66 6.78
11 1.50 40000 2 7.12 4.10 6.20 4.09 3.13 3.75 3.68 2.06 9.91 1.94 14.60
WLL shown is for In-Line pulll. DF is 5:1. Rating is based on standard tap size. Tapped with UNC Class 2 after galvanizing.
