Turnbuckles are used to adjust bridle sling legs to keep a load level.

Recommended for straight or in-line pull only. Turnbuckles meet ASME B30.26 with a Design Factor of 5:1.

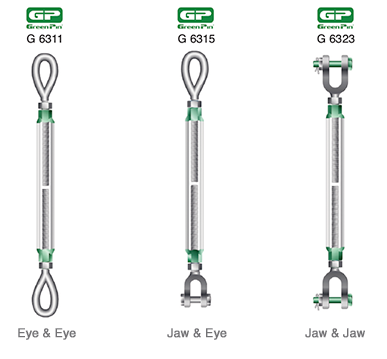

Diagram - Rigging Turnbuckles Green Pin

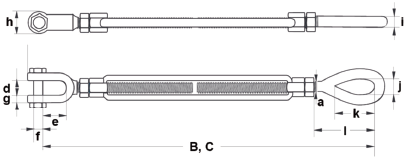

Diagram - Rigging Turnbuckles Green Pin
Dia.
&
Take up
inch		 WLL
lbs		 Length
closed
b		 Length
closed
c		 d e f g h i j k l Weight
each
lbs
3/8 x 6 1,200 115/32 161/2 15/32 13/16 5/16 11/32 13/16 13/32 1/2 15/32 115/16 1.15
1/2 x 6 2,200 123/8 1719/32 5/8 11/32 13/32 7/16 1 15/32 23/32 17/16 29/32 1.94
9 2,200 1511/32 239/16 5/8 11/32 13/32 7/16 1 15/32 23/32 17/16 21/4 2.49
12 2,200 1811/32 299/16 5/8 11/32 13/32 7/16 1 15/32 23/32 17/16 21/4 3.02
5/8 x 6 3,500 149/32 195/32 23/32 19/32 1/2 9/16 15/16 9/16 13/16 125/32 31/8 3.42
9 3,500 179/32 255/32 23/32 19/32 1/2 9/16 15/16 9/16 13/16 125/32 33/32 4.06
12 3,500 201/4 315/32 23/32 19/32 1/2 9/16 15/16 9/16 13/16 125/32 33/32 4.78
3/4 x 6 5,200 153/8 203/32 15/16 117/32 5/8 5/8 15/8 11/16 11/32 21/8 317/32 5.03
9 5,200 183/8 263/32 15/16 117/32 5/8 5/8 15/8 11/16 11/32 21/8 317/32 6.22
12 5,200 2111/32 323/32 15/16 117/32 5/8 5/8 15/8 11/16 11/32 21/8 31/2 6.5
18 5,200 275/16 443/32 15/16 117/32 5/8 5/8 15/8 11/16 11/32 21/8 317/21 7.28
7/8 x 12 7,200 2215/16 333/8 13/32 111/16 3/4 3/4 129/32 25/32 19/32 23/8 331/32 9.59
18 7,200 2829/32 4513/32 13/32 111/16 3/4 3/4 129/32 25/32 19/32 23/8 331/32 12.04
1 x 6 10,000 185/8 2225/32 11/4 131/32 7/8 25/32 21/8 15/16 11/2 3 45/8 10.27
12 10,000 249/16 3425/32 11/4 131/32 7/8 25/32 21/8 15/16 11/2 3 419/32 13.1
18 10,000 3017/32 4627/32 11/4 131/32 7/8 25/32 21/8 15/16 11/2 3 419/32 17.59
24 10,000 3617/32 5813/16 11/4 131/32 7/8 25/32 21/8 15/16 11/2 3 49/16 18.41
1-1/4 x 12 15,200 265/8 373/8 13/4 225/32 15/32 11/32 211/16 15/32 17/8 319/32 523/32 22.9
18 15,200 3225/32 4917/32 13/4 225/32 15/32 11/32 211/16 15/32 17/8 319/32 511/16 24.3
24 15,200 3815/16 6121/32 13/4 225/32 15/32 11/32 211/16 15/32 17/8 319/32 511/16 28.4
1-1/2 x 12 21,400 285/32 3823/32 21/32 225/32 13/8 11/8 35/32 19/32 25/32 45/32 61/8 28.9
18 21,400 349/32 5025/32 21/32 225/32 13/8 11/8 35/32 19/32 25/32 45/32 69/32 32.4
24 21,400 409/32 603/4 21/32 225/32 13/8 11/8 35/32 19/32 25/32 45/32 63/16 39.2
1-3/4 x 18 28,000 389/16 5313/32 211/32 33/8 15/8 15/16 39/16 117/32 23/8 423/32 73/4 49.2
24 28,000 441/2 657/16 211/32 33/8 15/8 15/16 39/16 117/32 23/8 423/32 723/32 60.6
2 X 24 37,000 479/16 681/32 21/2 311/16 2 119/32 43/16 113/16 223/32 525/32 93/32 94.6
2-1/2 X 24 60,000 527/8 7425/32 215/16 41/2 21/4 15/8 55/8 2 35/32 61/2 1025/32 150
2-3/4 X 24 75,000 553/32 7629/32 39/16 45/16 23/4 15/8 63/16 21/4 35/16 7 113/16 200
(1) Dimensions are for Jaw & Eye. Dimensions for Jaw & Jaw and Eye & Eye are slightly different.
