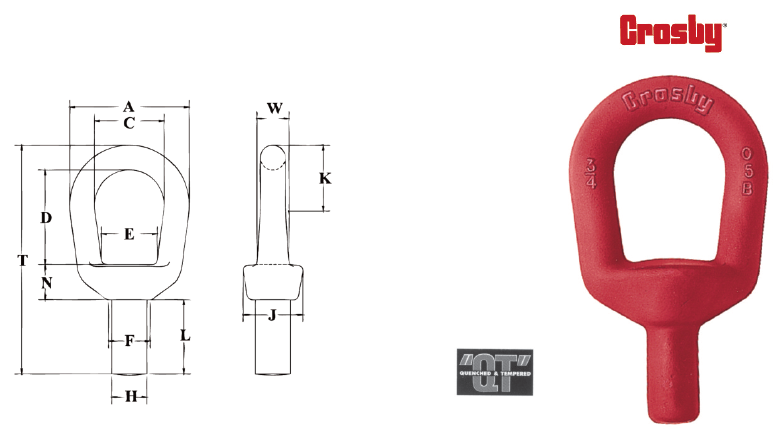

Dimensions (inch) for Lifting Eye S-405, galv.

Size
No.		 WLL
lbs		 Max.
Thread
inch		 A C D E F H* J K L N T W LBS
each
1 850 .31 1.25 .75 1.02 .66 .50 .34 .69 .67 .69 .42 2.46 .31 .10
2 1250 .38 1.62 1.00 1.20 .75 .56 .41 .81 .92 .94 .55 3.00 .41 .20
3 2250 .50 2.00 1.25 1.44 1.00 .81 .53 1.13 1.13 1.25 .68 3.69 .50 .50
4 3600 .63 2.50 1.50 1.92 1.19 1.00 .66 1.31 1.38 1.50 .80 4.59 .69 .79
5 5200 .75 3.00 1.75 2.28 1.38 1.12 .78 1.50 1.66 1.75 .98 5.55 .84 1.25
6 7200 .88 3.50 2.00 2.50 1.63 1.38 .91 1.88 1.91 1.88 1.06 6.16 1.00 2.25
7 10000 1.00 4.00 2.25 2.92 1.88 1.56 1.03 2.13 2.16 2.06 1.20 7.07 1.19 3.25
8 12500 1.13 4.50 2.50 3.35 1.94 1.88 1.16 2.38 2.47 2.50 1.40 8.16 1.38 4.70
10 18000 1.50 5.62 3.12 3.81 2.75 2.25 1.53 3.00 2.98 3.21 1.69 9.96 1.66 9.33
WLL shown is for In-Line pulll. DF is 5:1 based on shown UNC max. thread dia. *Dimension as forged, not machined.
