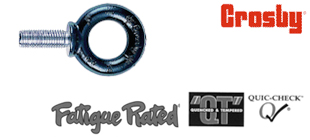

• Made by Crosby
  • Forged Steel
  • WLL shown are In-line pull
  • Design Factor 5:1
  • Fatigue rated at 1-1/2 times the WLL at 20,000 cycles
  • All Bolts threaded UNC

Dimensions (inch) for Imperial Machinery Eye Bolts
Shank Diameter
& Length		 WLL tons A B D E F H lbs. each
1/4 x 2 .32 .25 1.00 .50 1.94 .19 .50 .05
5/16 x 1-1/8 .60 .31 1.13 .62 2.38 .25 .69 .06
3/8 x 1-1/4 .77 .38 1.25 .75 2.72 .31 .78 .13
1/2 x 1-1/2 1.30 .50 1.50 1.00 3.38 .38 1.00 .25
5/8 x 1-3/4 2.60 .63 1.75 1.25 4.19 .50 1.31 .50
3/4 x 2 3.60 .75 2.00 1.50 4.94 .62 1.56 .88
7/8 x 2-1/4 5.30 .88 2.25 1.75 5.72 .75 1.84 1.57
1 x 2-1/2 6.65 1.00 2.50 2.00 6.47 .88 1.09 2.18
1-1/4 x 3 10.50 1.25 3.00 2.50 7.72 1.00 2.47 3.80
1-1/2 x 3-1/2 12.00 1.50 3.50 3.00 9.25 1.25 3.00 7.00
Dimensions (mm) for METRIC Machinery Eye Bolts
Shank Diameter
x Length
mm		 WLL
kgs		 A B D E F H LBS
each
M6 x 13 200 M6 x 1.0 13.0 19.1 47.0 4.9 19.6 .03
M8 x 13 400 M8 x 1.25 13.0 22.4 54.6 6.4 24.1 .05
M10 x 17 640 M10 x 1.5 17.0 25.4 64.3 7.9 26.5 .07
M12 x 20.5 1000 M12 x 1.75 20.5 30.2 77.7 9.7 32.8 .11
M16 x 27 1800 M16 x 2.0 27.0 35.1 96.0 12.7 38.9 .25
M20 x 30 2500 M20 x 2.5 30.0 38.1 108 16.0 43.4 .42
M24 x 36 4000 M24 x 3.0 36.0 51.0 142 22.4 58.4 1.05
M27 x 69.8 5000 M27 x 3.0 69.8 57.1 183 24.6 59.7 1.42
M30 x 45 6000 M30 x 3.5 45.0 63.5 171 25.4 69.3 1.77
M36 x 54 8500 M36 x 4.0 54.0 76.0 207 31.8 83.3 3.12
M42 x 95.2 14000 M42 x 4.5 95.2 88.9 266 35.0 91.4 4.58
M48 x 102 17300 M48 x 5.0 102 101 313 46.0 114 8.71
M64 x 127 29500 M64 x 6.0 127 114 378 53.8 140 14.74

WARNING: Read and follow these Instructions available on Slings and Eye Bolts page.
