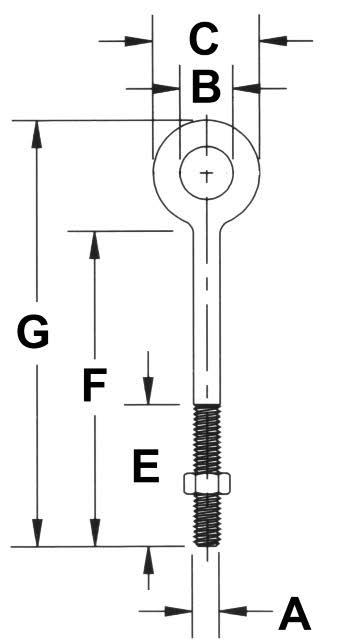

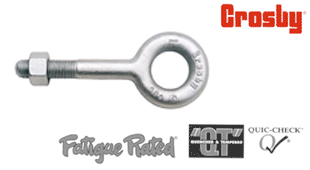

Dimensions (inch) for Regular Nut Eye Bolt

Shank Diameter
x Length
inch		 WLL
tons		 A B C E F G LBS
p.100
1/4 x 2 .32 .25 .50 1.00 1.50 2.00 3.06 8.20
1/4 x 4 .32 .25 .50 1.00 2.50 4.00 5.06 11.70
5/16 x 2-1/4 .60 .31 .62 1.25 1.50 2.25 3.56 13.30
5/16 x 4-1/4 .60 .31 .62 1.25 2.50 4.25 5.56 25.00
3/8 x 2-1/2 .77 .38 .75 1.50 1.50 2.50 4.12 23.30
3/8 x 4-1/2 .77 .38 .75 1.50 2.50 4.50 6.12 29.50
3/8 x 6 .77 .38 .75 1.50 2.50 6.00 7.62 35.20
1/2 x 3-1/4 1.30 .50 1.00 2.00 1.50 3.25 5.38 50.30
1/2 x 6 1.30 .50 1.00 2.00 3.00 6.00 8.12 66.10
1/2 x 8 1.30 .50 1.00 2.00 3.00 8.00 10.12 82.00
1/2 x 10 1.30 .50 1.00 2.00 3.00 10.00 12.12 88.00
1/2 x 12 1.30 .50 1.00 2.00 3.00 12.00 14.12 114.20
5/8 x 4 2.60 .62 1.25 2.50 2.00 4.00 6.69 103.10
5/8 x 6 2.60 .62 1.25 2.50 3.00 6.00 8.69 118.20
5/8 x 8 2.60 .62 1.25 2.50 3.00 8.00 10.69 135.10
5/8 x 10 2.60 .62 1.25 2.50 3.00 10.00 12.69 153.60
5/8 x 12 2.60 .62 1.25 2.50 4.00 12.00 14.69 167.10
3/4 x 4-1/2 3.60 .75 1.50 3.00 2.00 4.50 7.69 168.60
3/4 x 6 3.60 .75 1.50 3.00 3.00 6.00 9.19 184.50
3/4 x 8 3.60 .75 1.50 3.00 3.00 8.00 11.19 207.90
3/4 x 10 3.60 .75 1.50 3.00 3.00 10.00 13.19 235.00
3/4 x 12 3.60 .75 1.50 3.00 4.00 12.00 15.19 257.50
3/4 x 15 3.60 .75 1.50 3.00 5.00 15.00 18.19 298.00
7/8 x 5 5.30 .88 1.75 3.50 2.50 5.00 8.75 270.00
7/8 x 8 5.30 .88 1.75 3.50 4.00 8.00 11.75 308.00
7/8 x 12 5.30 .88 1.75 3.50 4.00 12.00 15.75 400.00
1 x 6 6.65 1.00 2.00 4.00 3.00 6.00 10.31 421.00
1 x 9 6.65 1.00 2.00 4.00 4.00 9.00 13.31 468.50
1 x 12 6.65 1.00 2.00 4.00 4.00 12.00 16.31 540.00
1 x 18 6.65 1.00 2.00 4.00 7.00 18.00 22.31 650.00
1-1/4 x 8 10.50 1.25 2.50 5.00 4.00 8.00 13.38 750.00
1-1/4 x 12 10.50 1.25 2.50 5.00 4.00 12.00 17.38 900.00
1-1/4 x 20 10.50 1.25 2.50 5.00 6.00 20.00 25.38 1210.00
