Rope Characteristics

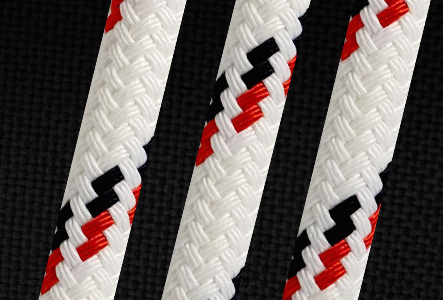

Maxibraid Plus is a double-braided rope constructed of an inner load-bearing core of Ultra High Weight Molecular Polyethylene (UHMWPE). The polyester outer sleeve is slightly thicker than Ultrex Plus, which would provide more abrasion resistance in high-wear applications.

The UHMWPE core is coated with Yale’s Maxijacket coating prior to being over-braided, for added toughness. Yale has developed a special splice for larger sizes (3/4″ and larger), which incorporates a tucked core yet is covered as a conventional double braid. The advantage to this splice is no movement of the eye in service and a greatly shortened internal tail, making the rope more flexible and less prone to being damaged adjacent to the eye.


Breaking Strengths

Diameter
(Inches)		 Weight
(Lbs/100f)		 Average Spliced Break Strength*
(Lbs)		 Minimum Spliced Break Strength*
(Lbs)		 Maximum Working Load 5:1**
(Lbs)
1/4 2.1 5,400 4,860 1,080
5/16 3.2 10,270 9,243 2,054
3/8 4.3 13,180 11,862 2,636
7/16 5.5 16,150 14,535 3,230
1/2 7.3 21,000 18,900 4,200
9/16 9.1 28,000 25,200 5,600
5/8 11.0 34,000 30,600 6,800
3/4 14.2 44,000 39,600 8,800
7/8 21.3 63,000 56,700 12,600
1 25.8 75,000 67,500 15,000
1-1/8 32.2 100,000 90,000 20,000
1-1/4 37.9 123,000 100,700 24,600
* Knots and abrupt bends significantly reduce the strength of all ropes and lower maximum working load.
** Working load is based on static or moderately dyanmic lifting/pulling operations. Instantaneous changes in load, up or down, in excess or 10% of the rope’s related working load constitute hazardous shock load and would void the normal working-load recommendation. Consult Yale Cordage for guidelines for working loads and the safe use of rope.
Diameter
(mm)		 Weight
(Kg/100m)		 Average Spliced Break Strength*
(kg)		 Minimum Spliced Break Strength*
(kg)		 Maximum Working Load 5:1**
(kg)
6 3.1 2,450 2,205 490
8 4.7 4,660 4,194 932
10 6.4 5,980 5,382 1,196
11 8.2 7,330 6,597 1,466
13 10.9 9,530 8,577 1,906
14 13.6 12,710 11,439 2,542
16 16.4 15,435 13,892 3,087
19 21.1 19,975 17,978 3,995
22 31.7 28,600 25,740 5,720
25 38.3 34,050 30,645 6,810
29 47.9 45,400 40,860 9,080
32 56.5 55,840 50,256 11,168
* Knots and abrupt bends significantly reduce the strength of all ropes and lower maximum working load.
** Working load is based on static or moderately dyanmic lifting/pulling operations. Instantaneous changes in load, up or down, in excess or 10% of the rope’s related working load constitute hazardous shock load and would void the normal working-load recommendation. Consult Yale Cordage for guidelines for working loads and the safe use of rope.

Rope Details

Fiber Type: UHMWPE from DSM Protective Materials, Polyester Sleeve
Elongation at WL: 0.6%
Elongation at Ult Break: 2.8 – 3.2%
Specific Gravity: 1.18 g/cc
Dielectric Strength: The maximum allowable leakage for clean, dry Maxibraid Plus is 100 micro-amperes when tested at 100kV per Yale Method 712-1701 Rev 1 “Routine Production Test.” Absorbed and entrained moisture or impurities will increase rope’s conductivity dramatically.

Rope Benefits

Provides more abrasion resistance in high-wear applications
Extraordinary strength, low elongation, and sleeve toughness deliver outstanding control
Expertly engineered strength and elasticity specifications
Superior wear life – 100% of load bearing capacity accomplished by the core alone

Elastic Elongation

Green Working 115 ft. lbs/lb.
Red Ultimate 4,295 ft. lbs/lb.
Maximum Working Load
Minimum Break Strength
Average Break Strength
