Sierra 78
Rope Characteristics

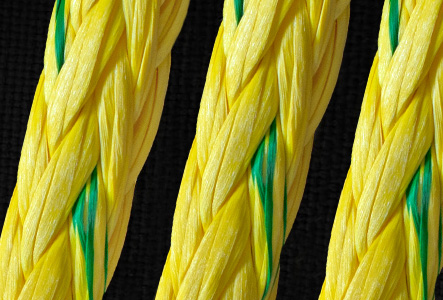

Sierra 78 is a 12-strand single braid of bio-based Dyneema®, an Eco Sustainable fiber. Made with bio-based feedstock, this fiber maintains the unique properties of Dyneema® while providing a more sustainable solution without compromising final product performance. Yale is excited to be one of the first to partner with DSM Protective Materials on this commitment to realize a more sustainable product. Choose Sierra 78 for exceptional performance and a certified green product for your equipment.
Breaking Strengths
| Diameter (Inches) |
Weight (Lbs/100f) |
Average Spliced Break Strength* (Lbs) |
Minimum Spliced Break Strength* (Lbs) |
Maximum Working Load 5:1** (Lbs) |
|---|---|---|---|---|
| 1/16 | 0.1 | 840 | 756 | 168 |
| 1/8 | 0.3 | 2,310 | 2,079 | 462 |
| 5/32 | 0.5 | 3,570 | 3,213 | 714 |
| 3/16 | 1.0 | 6,300 | 5,670 | 1,260 |
| 1/4 | 1.7 | 10,500 | 9,450 | 2,100 |
| 5/16 | 2.4 | 15,540 | 13,986 | 3,108 |
| 3/8 | 3.6 | 21,000 | 18,900 | 4,200 |
| 7/16 | 4.6 | 27,825 | 25,043 | 5,565 |
| 1/2 | 6.4 | 39,270 | 35,343 | 7,854 |
| 9/16 | 8.0 | 47,250 | 42,525 | 9,450 |
| 5/8 | 9.5 | 55,650 | 50,085 | 11,130 |
| 3/4 | 14.0 | 78,750 | 70,875 | 15,750 |
| 7/8 | 17.9 | 102,900 | 92,610 | 20,580 |
| 1 | 24.2 | 126,000 | 113,400 | 25,200 |
| 1-1/8 | 28.8 | 155,400 | 139,860 | 31,080 |
| 1-1/4 | 33.9 | 180,600 | 162,540 | 36,120 |
| 1-5/16 | 41.8 | 193,200 | 173,880 | 38,640 |
| 1-1/2 | 55.4 | 257,775 | 231,998 | 51,555 |
| 1-5/8 | 62.0 | 307,650 | 276,885 | 61,530 |
| 1-3/4 | 75.4 | 346,500 | 311,850 | 69,300 |
| 2 | 91.3 | 409,500 | 368,550 | 81,900 |
| * Knots and abrupt bends significantly reduce the strength of all ropes and lower maximum working load. ** Working load is based on static or moderately dyanmic lifting/pulling operations. Instantaneous changes in load, up or down, in excess or 10% of the rope’s related working load constitute hazardous shock load and would void the normal working-load recommendation. Consult Yale Cordage for guidelines for working loads and the safe use of rope. |
||||
| Diameter (mm) |
Weight (Kg/100m) |
Average Spliced Break Strength* (kg) |
Minimum Spliced Break Strength* (kg) |
Maximum Working Load 5:1** (kg) |
|---|---|---|---|---|
| 2 | 0.2 | 380 | 342 | 76 |
| 3 | 0.5 | 1,045 | 941 | 209 |
| 4 | 0.8 | 1,620 | 1,458 | 324 |
| 5 | 1.5 | 2,860 | 2,574 | 572 |
| 6 | 2.5 | 4,765 | 4,289 | 953 |
| 8 | 3.6 | 7,055 | 6,350 | 1,411 |
| 10 | 5.3 | 9,530 | 8,577 | 1,906 |
| 11 | 6.8 | 12,630 | 11,367 | 2,526 |
| 13 | 9.6 | 17,825 | 16,043 | 3,565 |
| 14 | 11.9 | 21,450 | 19,305 | 4,290 |
| 16 | 14.1 | 25,265 | 22,739 | 5,053 |
| 19 | 20.8 | 35,750 | 32,175 | 7,150 |
| 22 | 26.7 | 46,715 | 42,044 | 9,343 |
| 25 | 36.0 | 57,200 | 51,480 | 11,440 |
| 29 | 42.9 | 70,550 | 63,495 | 14,110 |
| 32 | 50.5 | 81,990 | 73,791 | 16,398 |
| 33 | 62.2 | 87,710 | 78,939 | 17,542 |
| 38 | 82.5 | 117,025 | 105,323 | 23,405 |
| 41 | 92.3 | 139,670 | 125,703 | 27,934 |
| 44 | 112.2 | 157,310 | 141,579 | 31,462 |
| 51 | 136.0 | 185,910 | 167,319 | 37,182 |
| * Knots and abrupt bends significantly reduce the strength of all ropes and lower maximum working load. ** Working load is based on static or moderately dyanmic lifting/pulling operations. Instantaneous changes in load, up or down, in excess or 10% of the rope’s related working load constitute hazardous shock load and would void the normal working-load recommendation. Consult Yale Cordage for guidelines for working loads and the safe use of rope. |
||||
