Half Link In-Line Clevis Grab Shortening Hooks

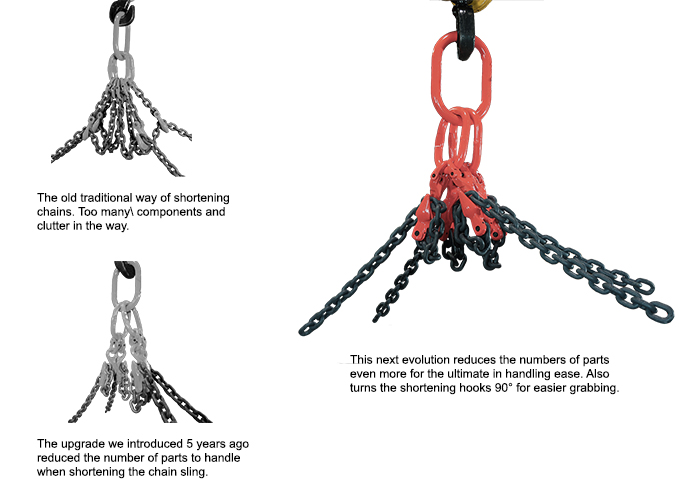

This is the next evolution chain shortening. You Not only avoid the extra chain connector in the shortening link, you also avoid the extra chain connector to the master link. In addition this turns the entire chain shortening link by 90° which makes it much easier to the handle the chain for shortening.

For chain diameter inch Stock Code

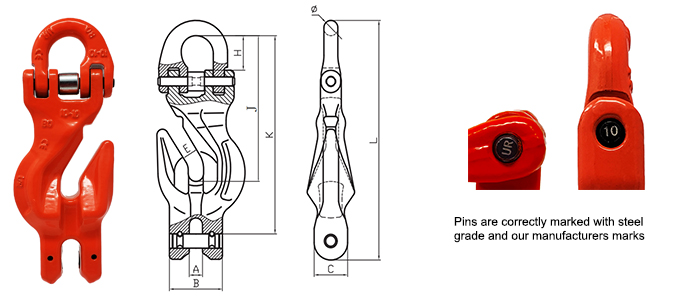

No.		 Dimensions inch Weight
each lbs
∅ A B C E H L K J
7/32+ C10-SCIL-022-RC 0.28 0.31 1.26 0.71 0.33 0.63 5.07 3.15 4.12 0.81
5/16 C10-SCIL-031-RC 0.39 0.37 1.46 0.94 0.41 0.98 6.50 5.35 3.94 1.74
3/8 C10-SCIL-038-RC 0.50 0.49 1.89 1.16 0.51 1.10 7.99 6.57 4.84 3.36
1/2 C10-SCIL-050-RC 0.65 0.63 2.32 1.46 0.61 1.46 10.59 8.78 6.42 7.43
5/8 C10-SCIL-062-RC 0.79 0.73 2.76 1.81 0.73 1.57 12.91 10.67 7.64 12.5
3/4 C10-SCIL-075-RC 0.98 0.94 3.35 2.05 0.98 1.81 15.67 12.91 9.72 21.58
7/8 C10-SCIL-088-RC 1.06 0.98 3.94 2.40 1.04 2.03 16.93 13.94 10.16 32.23
