Twin-Path® Bridle Slings
Synthetic Bridle Slings
Made from Twin-Path® Slings
DF 5:1
Select Crosby- or Rigger’s Choice® Hardware or let us design a sling assembly to fit your requirement. We can use all the different sling styles as individual legs. Below please find a sample selection of the endless design possibilities.

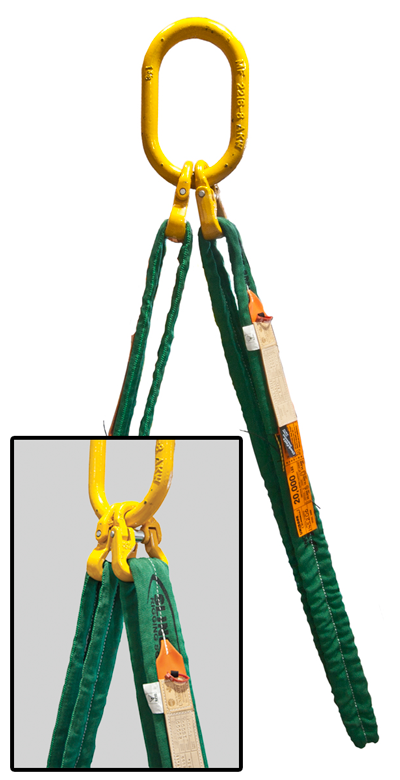

Twin-Path® Extra Bridle Sling:
K-Spec™ core yarns

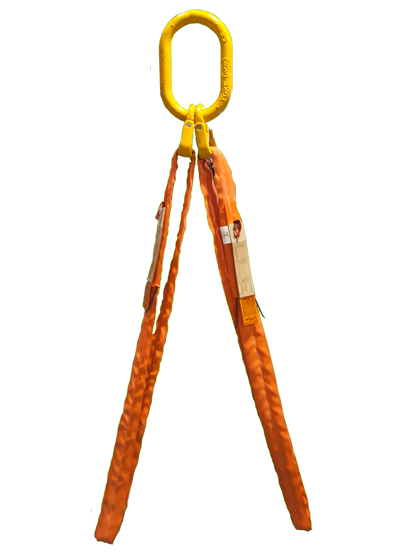

Twin-Path® Eye & Eye Bridle Sling;
Polyester core yarns
| K-Spec core yarns | |||||||
|---|---|---|---|---|---|---|---|
| Twin-Path® Extra Bridle Sling Stock No. |
Select Attachments from the Synthetic Sling Hardware section |
||||||
| Sling Width approx. inch |
WLL lbs. 90° vertical | WLL lbs. 60° horiz. | WLL lbs. 45° horiz. | WLL lbs. 30° horiz. | |||
 |
TPXC 2000-A1 | 1-leg | 4 | 20,000 | — | — | — |
| TPXC 2500-A1 | 1-leg | 5 | 25,000 | — | — | — | |
| TPXC 3000-A1 | 1-leg | 5 | 30,000 | — | — | — | |
| TPXC 4000-A1 | 1-leg | 6 | 40,000 | — | — | — | |
| TPXC 5000-A1 | 1-leg | 6 | 50,000 | — | — | — | |
| TPXC 6000-A1 | 1-leg | 6 | 60,000 | — | — | — | |
 |
TPXC 2000-A2 | 2-leg Bridle | 4 | — | 34,640 | 28,285 | 20,000 |
| TPXC 2500-A2 | 2-leg Bridle | 5 | — | 43,300 | 35,360 | 25,000 | |
| TPXC 3000-A2 | 2-leg Bridle | 5 | — | 51,960 | 42,430 | 30,000 | |
| TPXC 4000-A2 | 2-leg Bridle | 6 | — | 69,280 | 56,570 | 40,000 | |
| TPXC 5000-A2 | 2-leg Bridle | 6 | — | 86,600 | 70,710 | 50,000 | |
| TPXC 6000-A2 | 2-leg Bridle | 6 | — | 103,920 | 84,850 | 60,000 | |
 |
TPXC 2000-A3 | 3-leg Bridle | 4 | — | 51,962 | 42,430 | 30,000 |
| TPXC 2500-A3 | 3-leg Bridle | 5 | — | 64,950 | 53,050 | 37,500 | |
| TPXC 3000-A3 | 3-leg Bridle | 5 | — | 77,940 | 63,650 | 45,000 | |
| TPXC 4000-A3 | 3-leg Bridle | 6 | — | 103,920 | 84,850 |
60,000 |
|
| TPXC 5000-A3 | 3-leg Bridle | 6 | — | 129,900 | 106,000 | 75,000 | |
| TPXC 6000-A3 | 3-leg Bridle | 6 | — | 155,880 | 127,276 | 90,000 | |
 |
TPXC 2000-A4 | 4-leg Bridle | 4 | — | 69,300 | 56,570 | 40,000 |
| TPXC 2500-A4 | 4-leg Bridle | 5 | — | 86,600 | 70,700 | 50,000 | |
| TPXC 3000-A4 | 4-leg Bridle | 5 | — | 103,920 | 84,850 | 60,000 | |
| TPXC 4000-A4 | 4-leg Bridle | 6 | — | 138,560 | 113,130 | 80,000 | |
| TPXC 5000-A4 | 4-leg Bridle | 6 | — | 173,200 | 141,420 | 100,000 | |
| TPXC 6000-A4 | 4-leg Bridle | 6 | — | 207,840 | 169,700 | 120,000 | |
Note: Angles applied are explained on the Sling Angles page.
| Polyester core yarns | |||||||
|---|---|---|---|---|---|---|---|
| Twin-Path® Eye&Eye Bridle Sling Stock No. |
Select Attachments from the Synthetic Sling Hardware section |
||||||
| Sling Width approx. inch |
WLL lbs. 90° vertical | WLL lbs. 60° horiz. | WLL lbs. 45° horiz. | WLL lbs. 30° horiz. | |||
|
TPC 600-B1 | 1-leg | 4 | 6,000 | — | — | — |
| TPC 750-B1 | 1-leg | 4 | 7,500 | — | — | — | |
| TPC 1200-B1 | 1-leg | 5 | 12,000 | — | — | — | |
| TPC 1400-B1 | 1-leg | 5 | 14,000 | — | — | — | |
| TPC 1700-B1 | 1-leg | 5 | 17,000 | — | — | — | |
| TPC 2200-B1 | 1-leg | 6 | 22,000 | — | — | — | |
| TPC 2600-B1 | 1-leg | 6 | 26,000 | — | — | — | |
| TPC 3200-B1 | 1-leg | 6 | 32,000 | — | — | — | |
| TPC 4000-B1 | 1-leg | 6 | 40,000 | — | — | — | |
|
TPC 600-B1 | 2-leg Bridle | 4 | — | 9,800 | 6,930 | 6,000 |
| TPC 750-B1 | 2-leg Bridle | 4 | — | 13,600 | 10,600 | 7,500 | |
| TPC 1200-B1 | 2-leg Bridle | 5 | — | 20,790 | 16,970 | 12,000 | |
| TPC 1400-B1 | 2-leg Bridle | 5 | — | 24,250 | 19,800 | 14,000 | |
| TPC 1700-B1 | 2-leg Bridle | 5 | — | 29,450 | 24,050 | 17,000 | |
| TPC 2200-B1 | 2-leg Bridle | 6 | — | 38,100 | 31,100 | 22,000 | |
| TPC 2600-B1 | 2-leg Bridle | 6 | — | 45,000 | 36,769 | 26,000 | |
| TPC 3200-B1 | 2-leg Bridle | 6 | — | 55,420 | 45,250 | 32,000 | |
| TPC 4000-B1 | 2-leg Bridle | 6 | — | 69,280 | 56,570 | 40,000 | |
|
TPC 600-B1 | 3-leg Bridle | 4 | — | 15,590 | 12,730 | 9,000 |
| TPC 750-B1 | 3-leg Bridle | 4 | — | 19,480 | 15,900 | 11,250 | |
| TPC 1200-B1 | 3-leg Bridle | 5 | — | 31,180 | 25,500 | 18,000 | |
| TPC 1400-B1 | 3-leg Bridle | 5 | — | 36,370 | 29,700 | 21,000 | |
| TPC 1700-B1 | 3-leg Bridle | 5 | — | 44,170 | 36,060 | 25,500 | |
| TPC 2200-B1 | 3-leg Bridle | 6 | — | 57,160 | 46,700 | 33,000 | |
| TPC 2600-B1 | 3-leg Bridle | 6 | — | 67,550 | 55,150 | 39,000 | |
| TPC 3200-B1 | 3-leg Bridle | 6 | — | 83,140 | 67,890 | 48,000 | |
| TPC 4000-B1 | 3-leg Bridle | 6 | — | 103,920 | 84,850 | 60,000 | |
|
TPC 600-B1 | 4-leg Bridle | 4 | — | 20,780 | 16,970 | 12,000 |
| TPC 750-B1 | 4-leg Bridle | 4 | — | 25,980 | 21,200 | 15,000 | |
| TPC 1200-B1 | 4-leg Bridle | 5 | — | 41,570 | 33,940 | 24,000 | |
| TPC 1400-B1 | 4-leg Bridle | 5 | — | 48,500 | 39,600 | 28,000 | |
| TPC 1700-B1 | 4-leg Bridle | 5 | — | 58,900 | 48,000 | 34,000 | |
| TPC 2200-B1 | 4-leg Bridle | 6 | — | 76,200 | 62,200 | 44,000 | |
| TPC 2600-B1 | 4-leg Bridle | 6 | — | 90,000 | 73,530 | 52,000 | |
| TPC 3200-B1 | 4-leg Bridle | 6 | — | 110,850 | 90,500 | 64,000 | |
| TPC 4000-B1 | 4-leg Bridle | 6 | — | 138,560 | 113,150 | 80,000 | |
Note: Angles applied are explained on the Sling Angles page.
|
Select CROSBY Hardware from the Synthetic Sling Hardware section. These fittings are easily attached and disattached with either threaded pins or by bolt-and-nut method. No special tools required. |
|||
 |
|||
| Gr. 80 Chain Connector | Synthetic Shackle | Choker Hook | Web Connector |
|
Select RIGGER’S CHOICE Hardware from the Synthetic Sling Hardware section. These fittings are attached the same as grade 80 chain fittings. Tools are required to connect and disconnect the fittings. This is regarded as a more permantent connection. |
||||
 |
||||
| Chain | Master Link | Sling Hook | Self Locking | Foundry Hook |
