Uni-Path® Bridle Slings
Synthetic Bridle Slings
Made from Uni-Path® Slings
DF 5:1
Select Crosby- or Rigger’s Choice® Hardware or let us design a sling assembly to fit your requirement. We can use all the different sling styles as individual legs. Below please find a sample selection of the endless design possibilities.

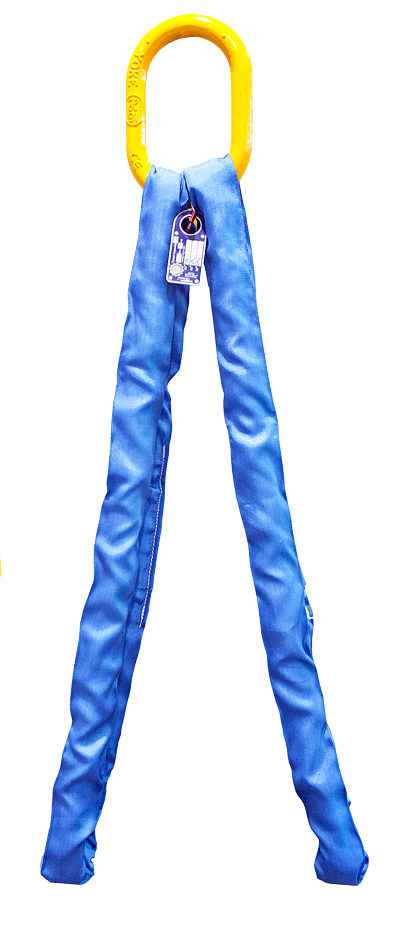

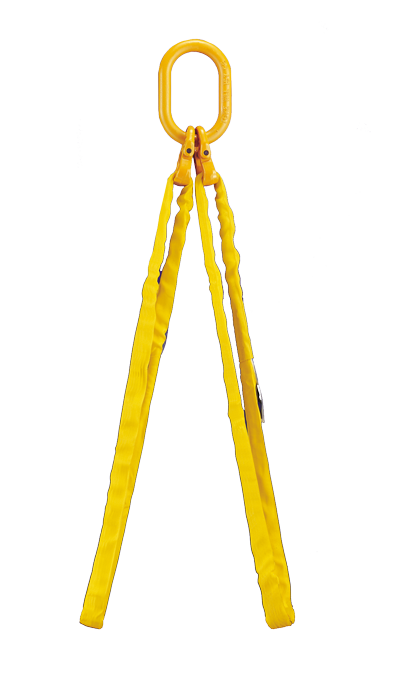

Uni-Path® Endless Style Bridle Sling;
Polyester core yarns
| Polyester core yarns | |||||||
|---|---|---|---|---|---|---|---|
| Uni-Path® Endless Style Bridle Sling Stock No. |
Select Attachments from the Synthetic Sling Hardware section |
||||||
| Sling Width approx. inch |
WLL lbs. 90° vertical | WLL lbs. 60° horiz. | WLL lbs. 45° horiz. | WLL lbs. 30° horiz. | |||
 |
UPD 300-C1 | 1-leg | 2 | 3,000 | — | — | — |
| UPD 400-C1 | 1-leg | 2 | 4,000 | — | — | — | |
| UPD 600-C1 | 1-leg | 2 | 6,000 | — | — |
— |
|
| UPD 900-C1 | 1-leg | 3 | 9,000 | — | — | — | |
| UPD 1200-C1 | 1-leg | 3 | 12,000 | — | — | — | |
| UPD 1400-C1 | 1-leg | 3 | 14,000 | — | — | — | |
| UPD 1700-C1 | 1-leg | 4 | 17,000 | — | — | — | |
| UPD 2300-C1 | 1-leg | 4 | 23,000 | — | — | — | |
| UPD 2600-C1 | 1-leg | 4 | 26,000 | — | — | — | |
| UPD 3200-C1 | 1-leg | 4 | 32,000 | — | — | — | |
| UPD 4000-C1 | 1-leg | 4 | 40,000 | — | — | — | |
| UPD 5000-C1 | 1-leg | 5 | 50,000 | — | — | — | |
 |
UPD 300-C2 | 2-leg Bridle | 2 | — | 5,190 | 4,240 | 3,000 |
| UPD 400-C2 | 2-leg Bridle | 2 | — | 6,930 | 5,660 | 4,000 | |
| UPD 600-C2 | 2-leg Bridle | 2 | — | 9,800 | 6,930 | 6,000 | |
| UPD 900-C2 | 2-leg Bridle | 3 | — | 12,730 | 11,020 | 9,000 | |
| UPD 1200-C2 | 2-leg Bridle | 3 | — | 20,780 | 16,970 | 12,000 | |
| UPD 1400-C2 | 2-leg Bridle | 3 | — | 24,250 | 19,800 | 14,000 | |
| UPD 1700-C2 | 2-leg Bridle | 4 | — | 29,450 | 24,050 | 17,000 | |
| UPD 2300-C2 | 2-leg Bridle | 4 | — | 37,560 | 26,560 | 23,000 | |
| UPD 2600-C2 | 2-leg Bridle | 4 | — | 45,000 | 36,770 | 26,000 | |
| UPD 3200-C2 | 2-leg Bridle | 4 | — | 55,400 | 45,250 | 32,000 | |
| UPD 4000-C2 | 2-leg Bridle | 4 | — | 69,300 | 56,570 | 40,000 | |
| UPD 5000-C2 | 2-leg Bridle | 5 | — | 86,600 | 70,700 | 50,000 | |
 |
UPD 300-C3 | 3-leg Bridle | 2 | — | 7,340 | 5,190 | 4,500 |
| UPD 400-C3 | 3-leg Bridle | 2 | — | 9,800 | 6,930 | 6,000 | |
| UPD 600-C3 | 3-leg Bridle | 2 | — | 14,700 | 10,400 | 9,000 | |
| UPD 900-C3 | 3-leg Bridle | 3 | — | 22,050 | 15,590 | 13,500 | |
| UPD 1200-C3 | 3-leg Bridle | 3 | — | 31,180 | 25,500 | 18,000 | |
| UPD 1400-C3 | 3-leg Bridle | 3 | — | 36,370 | 29,700 | 21,000 | |
| UPD 1700-C3 | 3-leg Bridle | 4 | — | 44,170 | 36,060 | 25,500 | |
| UPD 2300-C3 | 3-leg Bridle | 4 | — | 56,340 | 39,850 | 34,500 | |
| UPD 2600-C3 | 3-leg Bridle | 4 | — | 67,550 | 55,150 | 39,000 | |
| UPD 3200-C3 | 3-leg Bridle | 4 | — | 83,140 | 67,900 | 48,000 | |
| UPD 4000-C3 | 3-leg Bridle | 4 | — | 103,920 | 84,850 | 60,000 | |
| UPD 5000-C3 | 3-leg Bridle | 5 | — | 173,200 | 106,100 | 75,000 | |
 |
UPD 300-C4 | 4-leg Bridle | 2 | — | 9,800 | 6,930 | 6,000 |
| UPD 400-C4 | 4-leg Bridle | 2 | — | 13,060 | 9,240 | 8,000 | |
| UPD 600-C4 | 4-leg Bridle | 2 | — | 20,780 | 16,970 | 12,000 | |
| UPD 900-C4 | 4-leg Bridle | 3 | — | 31,180 | 25,450 | 18,000 | |
| UPD 1200-C4 | 4-leg Bridle | 3 | — | 41,570 | 33,940 | 24,000 | |
| UPD 1400-C4 | 4-leg Bridle | 3 | — | 48,500 | 39,600 | 28,000 | |
| UPD 1700-C4 | 4-leg Bridle | 4 | — | 58,900 | 48,000 | 34,000 | |
| UPD 2300-C4 | 4-leg Bridle | 4 | — | 79,700 | 65,000 | 46,000 | |
| UPD 2600-C4 | 4-leg Bridle | 4 | — | 90,000 | 73,530 | 52,000 | |
| UPD 3200-C4 | 4-leg Bridle | 4 | — | 110,850 | 90,500 | 64,000 | |
| UPD 4000-C4 | 4-leg Bridle | 4 | — | 138,560 | 113,130 | 80,000 | |
| UPD 5000-C4 | 4-leg Bridle | 5 | — | 173,200 | 141,400 | 100,000 | |
Note: Angles applied are explained on the Sling Angles page.
|
Select CROSBY Hardware from the Synthetic Sling Hardware section. These fittings are easily attached and disattached with either threaded pins or by bolt-and-nut method. No special tools required. |
|||
 |
|||
| Gr. 80 Chain Connector | Synthetic Shackle | Choker Hook | Web Connector |
|
Select RIGGER’S CHOICE Hardware from the Synthetic Sling Hardware section. These fittings are attached the same as grade 80 chain fittings. Tools are required to connect and disconnect the fittings. This is regarded as a more permantent connection. |
||||
 |
||||
| Chain | Master Link | Sling Hook | Self Locking | Foundry Hook |
