Compression Load Cell, NI 5-1000 tonnes

Manufactured in ranges from 5t to 500t – other capacities available on application.

Straightpoint compression load cells are manufactured to the same stringent standards as all Straightpoint products.

The bodies are machined from high grade stainless steel, offering excellent strength and anti-corrosion properties. Compression load cells can be supplied with optional loadcaps to protect objects being tested.

The compact lightweight design provides ease of use and superior portability, allowing Straightpoint compression load cells to be used in a broad range of industries including mining, energy, defence, heavy rigging, shipping and general transportation sectors.

Utilizing the same advanced microprocessor based electronics as all Straightpoint products, Straightpoint’s compression load cells benefit from high sampling rates, extreme resistance to industrial level noise and unprecedented stability.

This high stability gives this product over 5,000 divisions and the highest standard resolution of any high-capacity compression load cell on the market today.

Like all Straightpoint products, Straightpoint compression load cells offer robust construction, advanced electronics, industry leading resolution and accuracy – all at a cost-effective, affordable price.

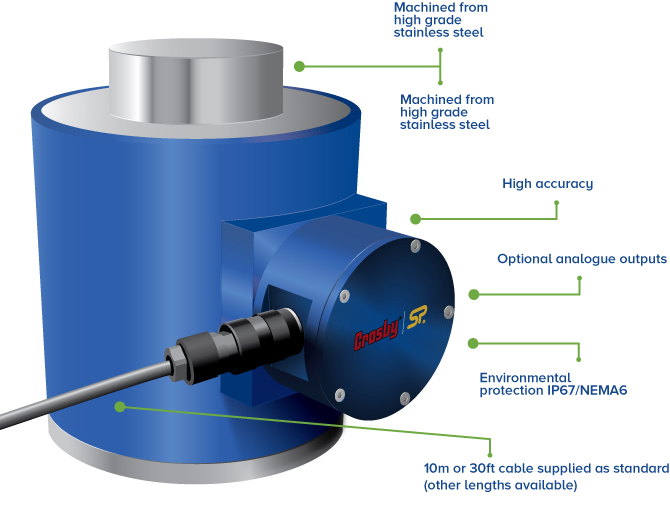

Features:

  • Compact size
  • Environmentally sealed to IP67 or NEMA6
  • Optional analogue outputs
  • Stainless steel element
  • High accuracy
  • Lightweigh
  • Unrivalled resolution
  • 10m or 30ft cable supplied as standard (other lengths available)
  • Custom versions available
  • Design validated by F.E.A.

Dimensional Data

Part Number NI5TC NI10TC NI25TC NI50TC NI100TC NI150TC NI300TC NI500TC WNI1000TC
Capacity  5te 10te 25te 50te 100te 150te 300te 500te 1000te
11000lb 22000lb 55000lb 110,000lb 220,000lb 330,000lb 660,000lb 110,0000lbs 2200000lbs
Resolution  0.001te 0.002te 0.005te 0.01te 0.05te 0.05te 0.1te 0.2te 0.5te
2lb 5lb 10lb 20lb 100lb 100lb 200lb 500lb 1000lb
Weight  6.2kg 6.2kg 6.2kg 6.2kg 15.5kg 15.5kg 65kg 65kg 172kg
13.64lb 13.64lb 13.64lb 13.64lb 34lb 34lb 143lb 143lb 379lb
Safety Factor 3:1
Protection IP67
NEMA6
Operating Temp  -10 to +50 °C
14 to 122˚F
Accuracy ±0.1% full scale
Dimension ØA  102 102 102 102 152 152 185 185 362
4.02 4.02 4.02 4.02 5.98 5.98 7.28 7.28 14.25
Dimension B  127 127 127 127 184 184 300 300 310
5.00 5.00 5.00 5.00 7.24 7.24 11.81 11.81 12.20
Dimension ØD  59 59 59 59 80 80 155 155 270
2.32 2.32 2.32 2.32 3.15 3.15 6.10 6.10 10.63
Dimension E  16 16 16 16 26 26 27.5 27.5 40
0.63 0.63 0.63 0.63 1.02 1.02 1.08 1.08 1.57
Dimension F  M18 x 2.5 M18 x 2.5 M18 x 2.5 M20 x 2.5 M20 x 2.5 M20 x 2.5 M20 x 2.5 M20 x 2.5 M30x3.5
M18 x 2.5 M18 x 2.5 M18 x 2.5 M20 x 2.5 M20 x 2.5 M20 x 2.5 M20 x 2.5 M20 x 2.5 M30x3.5
Dimension G  152 152 152 152 432 432 432 432 950
5.98 5.98 5.98 5.98 17.01 17.01 17.01 17.01 37.40
Dimension H  158 158 158 158 204 204 237 237 416
6.22 6.22 6.22 6.22 8.03 8.03 9.33 9.33 16.38
