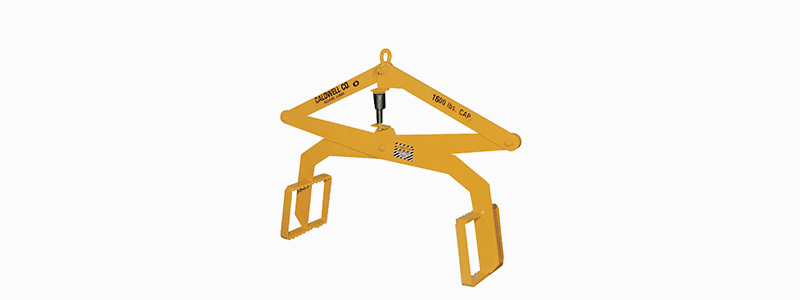

Bale Lifting Tong
Product Features
- Lifts bales of paper, cotton, and other materials.
- Wide gripping surface for load stability.
- Includes Auto-Latch mechanism for one person operation.
- Complies with ASME standards.
Product Specifications
| Model 77 Specifications | ||||||
|---|---|---|---|---|---|---|
| Model numbers shown in red are part of our QUICKSHIP program. | ||||||
| Model Number | Rated Capacity (tons) | Bale Width (in.) | Unit Height (in.) | Pad Width (in.) | Pad Height (in.) | Weight (lbs) |
| 77-1/2-36 | 1/2 | 36 | 52 | 18 | 9 | 280 |
| 77-1/2-48 | 1/2 | 48 | 56 | 18 | 9 | 300 |
| 77-1-36 | 1 | 36 | 52 | 18 | 9 | 280 |
| 77-1-48 | 1 | 48 | 56 | 18 | 9 | 300 |
