Loadshackle SLB, 3.25 to 400 tonnes

Straightpoint’s Loadshackle is available from stock in capacities of 3.25t to 400t, as well as being obtainable up to 3000t.

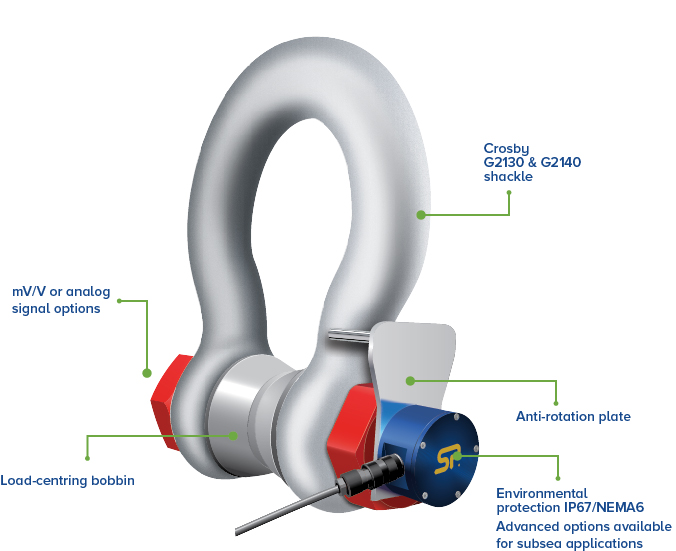

Manufactured from Crosby’s industry-leading 2130 Carbon and 2140 Alloy Bolt Type Anchor Shackle, the product offers reduced overall weight and headroom, providing a great fit for low headroom applications.

Utilising the same advanced microprocessor based electronics as all Straightpoint products, the cabled Loadshackle benefits from high sampling rates, extreme resistance to industrial level noise and unprecedented stability.

A huge range of tooling allows Straightpoint to calibrate in shackle for extra accuracy, unlike many other load cell manufacturers. Their cabled Loadshackles are also environmentally sealed to IP67 or NEMA6 and, as an option, sealed for permanent submersion for sub-sea use.

The cabled Loadshackle range can be used with digital displays, including the Straightpoint Handheld plus, PLCs, data acquisition systems (DAQ), etc.

They are configured with a vast array of output formats to include mV/V, RS-422, RS-485, utilising the ASCII, MODBUS RTU and CAN-BUS protocols or supplied with integral amplifier allowing analogue outputs such as 4-20mA, 0-10v, 0-5v etc.

Whether used in heavy lifting, mooring anchor placement or sub-sea applications, Straightpoint’s cabled Loadshackle offers robust construction, advanced electronics, industry leading resolution and accuracy – all at a cost-effective, affordable price.

Features:

  • Robust construction
  • Compact size and low headroom
  • Every Loadshackle proof tested
  • Lightweight
  • Unrivalled resolution
  • Push button tare
  • Environmentally sealed to IP67 or NEMA6
  • Peak hold
  • Advanced options available for subsea applications
  • Manufactured using industry leading brand shackles
  • mv/v or analog signal options
  • Design validated by F.E.A.

Specifications & Technical Data

Loadshackle Specifications
Part Number SLB3.25T SLB6.5T SLB12T SLB25T SLB55T SLB85T SLB120T SLB200T SLB300T SLB400T SLB500T SLB600T SLB700T SLB800T SLB1000T SLB1250T SLB1500T
Capacity  3.25te 6.5te 12te 25te 55te 85te 120te 200te 300te 400te 500te 600te 700te 800te 1000te 1250te 1500te
7150lb 14300lb 26400lb 55000lb 120000lbs 185000lbs 260000lbs 440000lbs 660000lbs 880000lbs 1100000lbs 1320000lbs 1540000lbs 1760000lbs 2200000lbs 2750000lbs 3300000lbs
Resolution  0.005te 0.005te 0.01te 0.02te 0.05te 0.05te 0.1te 0.2te 0.5te 0.5te 0.5te 0.5te 1te 1te 1te 1te 1te
10lb 10lb 20lb 50lb 100lb 100lb 200lb 200lb 1000lb 1000lb 1000lb 1000lb 2000lb 2000lb 2000lb 2000lb 2000lb
Weight  2.8kg 3.2kg 8kg 18kg 25kg 45kg 85kg 260kg 405kg 662kg 819kg 1056kg 1196kg 1236kg 1630kg 2095kg 2452kg
6.16lb 7lb 17.6lb 40lb 55lb 99lb 187lb 573lb 893lb 1459lb 1806lb 2328lb 2637lb 2725lb 3594lb 4619lb 5406lb
Protection IP67/NEMA6
Safety Factor 5:1 when used with bobbin
Operating Temp -10 to +50 C
14 to 122˚F
Accuracy +/- 1% FS

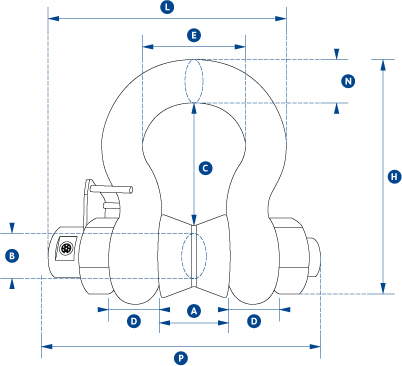

Dimension A  26.9 36.6 51.5 73 82.5 105 127 188 215 240 262 288 315 315 357 378 378
1.06 1.44 2.03 2.87 3.25 4.13 5.00 7.40 8.46 9.45 10.31 11.34 12.40 12.40 14.06 14.88 14.88
Dimension ØB  19.1 25.4 35.1 51 57 70 82.5 125 150 175 185 205 215 220 240 270 290
0.75 1.00 1.38 2.01 2.24 2.76 3.25 4.92 5.91 6.89 7.28 8.07 8.46 8.66 9.45 10.63 11.42
Dimension C  56.9 79.7 113 170 189.5 253 319.5 431 505 544 665 622 617 612 661 720 773
2.24 3.14 4.45 6.69 7.46 9.96 12.58 16.97 19.88 21.42 26.18 24.49 24.29 24.09 26.02 28.35 30.43
Dimension D  14.46 22.4 31.8 44.5 51 66.5 76 110 120 160 160 185 200 200 240 225 225
0.57 0.88 1.25 1.75 2.01 2.62 2.99 4.33 4.72 6.30 6.30 7.28 7.87 7.87 9.45 8.86 8.86
Dimension E  42.9 58 82.5 127 164 184 200 280 305 325 350 375 400 400 420 450 450
1.69 2.28 3.25 5.00 6.46 7.24 7.87 11.02 12.01 12.80 13.78 14.76 15.75 15.75 16.54 17.72 17.72
Dimension H  103.3 148 210 313 348 453 546 769 904 1007 117 1170 1189 1197 1312 1432 1532
4.07 5.83 8.27 12.32 13.70 17.83 21.50 30.28 35.59 39.65 4.61 46.06 46.81 47.13 51.65 56.38 60.31
Dimension L  124.1 153.5 193.8 278 303 365 405 522 577 660 707 777 829 829 902 967 987
4.89 6.04 7.63 10.94 11.93 14.37 15.94 20.55 22.72 25.98 27.83 30.59 32.64 32.64 35.51 38.07 38.86
Dimension N  17.5 24.6 35.1 57 61 79 92 120 140 160 180 200 210 210 240 260 280
0.69 0.97 1.38 2.24 2.40 3.11 3.62 4.72 5.51 6.30 7.09 7.87 8.27 8.27 9.45 10.24 11.02
Dimension P  140 170 215 290 314 391 438 592 647 757 782 870 927 932 997 1052 1052
5.51 6.69 8.46 11.42 12.36 15.39 17.24 23.31 25.47 29.80 30.79 34.25 36.50 36.69 39.25 41.42 41.42
Crosby Shackle G2130 G2140 S2135
