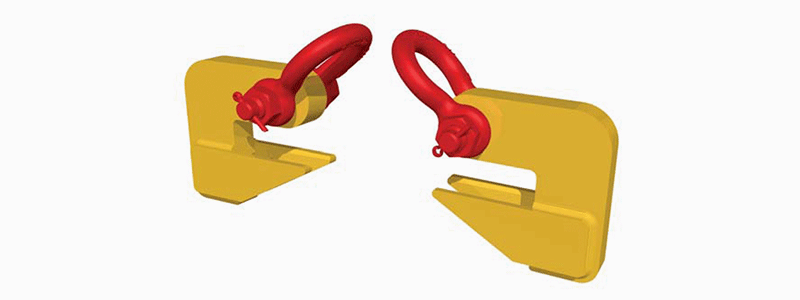

NEW – Load Hooks
Versatile load hooks are designed to handle a wide range of applications. Unique lifting tines are spaced to accommodate I-Beam web and provide a flat lifting surface to handle other objects such as Sheet Piling, Tube, and Channel. Designed and manufactured to ASME standards.
Product Features
- Unique lifting tines are spaced to easily accommodate I-Beam web.
- Flat surface on hooks lifts a wide range of shapes.
- Use in pairs in conjunction with a bridle sling and shackles.
- Capacity shown is for a 45º angle on the lifting system.
- Complies with ASME standards.
New Product – Load Hooks
Versatile Load Hooks are a great solution for a wide range of lifting applications. Visit our youtube channel to view the HD version of this video. Link: Video

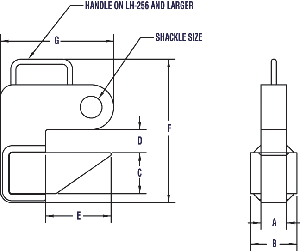

Product Specifications
| Model LH - Load hooks | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| LH-49 | 4,900 | 1/2 | 2 | 0.56 | 1.38 | 1.5 | 1 | 2.5 | 4.4 | 4.9 | 6 |
| LH-100 | 10,000 | 3/4 | 4-3/4 | 0.94 | 1.75 | 2 | 1.25 | 3.5 | 5.9 | 6.8 | 16 |
| LH-170 | 17,000 | 7/8 | 6-1/2 | 1.19 | 2.25 | 2.25 | 1.5 | 3.88 | 6.7 | 7.3 | 24 |
| LH-256 | 25,600 | 1-1/8 | 9-1/2 | 1.44 | 2.5 | 2.88 | 1.75 | 4.63 | 10.4 | 8.8 | 42 |
| LH-400 | 40,000 | 1-1/2 | 17 | 1.94 | 3.5 | 3.25 | 2 | 5.63 | 12.2 | 11 | 84 |
| LH-674 | 67,400 | 1-3/4 | 25 | 2.44 | 4.5 | 4 | 2.25 | 6.38 | 14 | 12.8 | 152 |
|
Top rigging shackles are not included. |
|||||||||||
