Telemetry Tensile Link, TL-3.0 1 – 500 tons

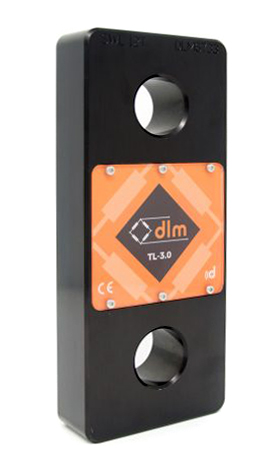

The TL-3.0 is a third generation Telemetry Tensile Link load cell. A light weight wireless tension measuring unit that combines a high level of performance with a robust design for harsh environments.

With a range up to 800m and a huge battery life of 700 hours the TL-3.0 can be paired with one or a multiple number of TW-3.0-T Telemetry Handheld Displays.

Features:

  • Light weight aerospace grade aluminium
  • Ability to transmit to 12 handheld displays
  • 2.4GHz licence free frequency
  • High accuracy
  • Rebranding option
  • 800m signal range
  • Remote power on/off feature
  • Sleep mode for battery conservation

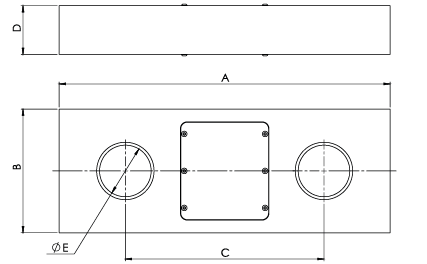

Dimensional Data

Load Capacity Part Number Shackles A B C D ØE Accuracy % Proof test % Weight Default Resolution
Tonnes FRO Load Capacity (Kg) (Kg)
1 0001 – 1300 Crosby G2130 214 81 174 16 16.5 0.2 150 1.0 1
2 0001 – 1301 Crosby G2130 214 81 174 16 16.5 0.2 150 1.0 1
5 0001 – 1302 Crosby G2130 260 109 180 25 28 0.2 150 2.0 1
12 0001 – 1303 Crosby G2130 260 109 165 40 38 0.2 150 2.6 5
17 0001 – 1304 Crosby G2130 320 127 204 45 44 0.2 150 4.0 5
25 0001 – 1305 Crosby G2130 340 127 204 50 53 0.2 150 5.0 10
35 0001 – 1306 Crosby G2130 370 149 210 50 60 0.2 150 6.5 10
50 0001 – 1307 Crosby G2130 395 160 220 73 73 0.2 150 11 50
80 0001 – 1308 GN H9 465 180 250 98 86 0.2 150 18 100
100 0001 – 1309 GN H10 535 220 275 100 99 0.3 150 26.5 100
120 0001 – 1310 GN H10 535 240 275 100 99 0.3 150 29.5 100
150 0001 – 1311 GN H10 587 260 295 125 112 0.3 150 43.5 100
200 0001 – 1312 GN H10 658 320 320 125 128 0.5 150 62.0 100
200 0001 – 1313 Crosby G2140 658 320 320 125 125 0.5 150 62.0 100
300 0001 – 1314 GN H10 790 370 380 147 154 0.5 150 100.5 100
300 0001 – 1315 Crosby G2140 790 370 380 147 156 0.5 150 100.5 100
400 0001 – 1316 GN H10 950 500 500 175 180 1.0 150 200.0 100
400 0001 – 1317 Crosby G2140 950 500 500 175 183 1.0 150 200.0 100
500 0001 – 1318 GN H10 950 500 500 200 190 1.0 150 220.5 100
500 0001 – 1319 Crosby G2140 950 500 500 200 196 1.0 150 220.5 100

Specifications
Link Material: Aluminium
Design: Holes designed to fi t fed spec shackles / Pairing switch / Signal LED / Charging socket
Bridge Resistance: 700Ω
Battery: 3.6V Li-Po Rechargeable battery
Battery Life: 700 hours continuous (2 years non-operational)
Charger: Supplied with universal smart charger
Operating Temperature: -20°C to +60°C
Handheld Display: One or more TW3.0 displays
Frequency: 2.4GHz
Range: Up to 800m line of sight
Calibration: Calibration and proof load certifi cates to BS EN 10002/2 1992
Protection: IP65
Packaging: Rugged and watertight case for links up to 50T / Custom made wooden case for larger capacities
Approvals: FCC tested and compliant
