Telescopic Sheet Lifter

This rack and pinion style lifter allows for handling of a wide range of sheets and plates with minimum manpower. Lifters are custom designed per application.

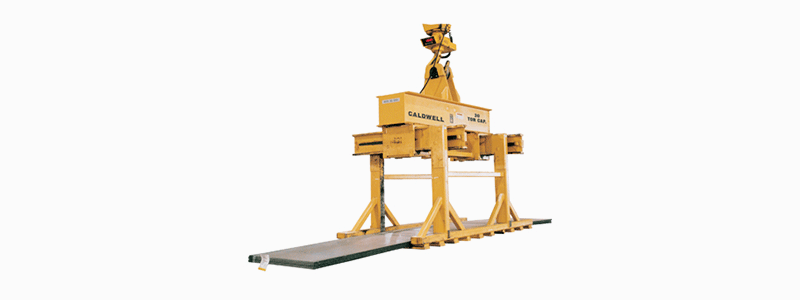

30 ton capacity model 260 with special grab shoes shown lifting sheets.

60 ton model 260 shown with dunnage cutouts on carrying angle.

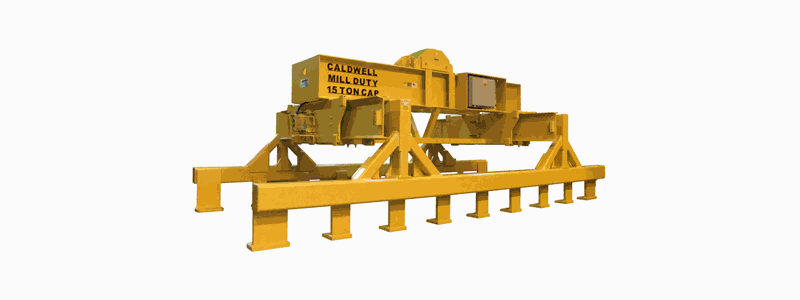

Model 260-15-130 Telescopic Sheet Lifter, 15 ton capacity shown.

Product Features

Low headroom design.
Replaceable wear plates.
Heavy duty worm gear reducers.
Drive protection includes slip clutch.
Machined slide arms.
Designed for ease of maintenance.
AC power.

Product Options

Powered rotation with or without stops.
Heavy duty function indicator lights.
Integral weighing system.
Maximum open/minimum closed limit switches.
Carrying angles with dunnage cutouts (pictured above).
Detachable, auxiliary carrying angles for handling longer loads.
Chain or cable reel mounted end hooks for thin gauge or extra wide material.
DC power.
Electrical reversing motor controls.
High temperature environment capability.
