Wall Pick

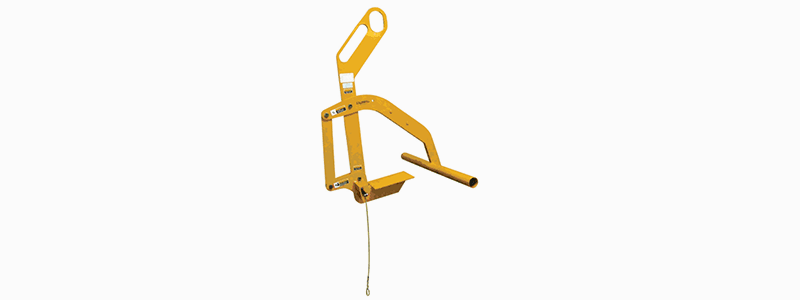

Model WP wall pick shown.

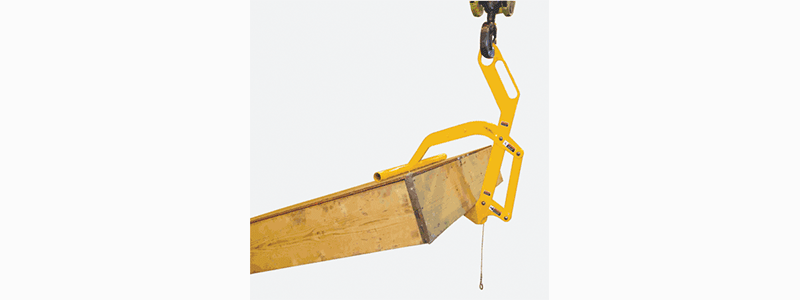

Wall Pick engaged onto the panel to start the lift.

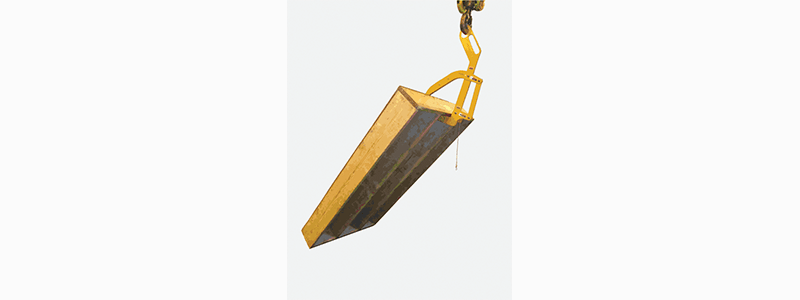

Wall Pick lifting the panel into position.

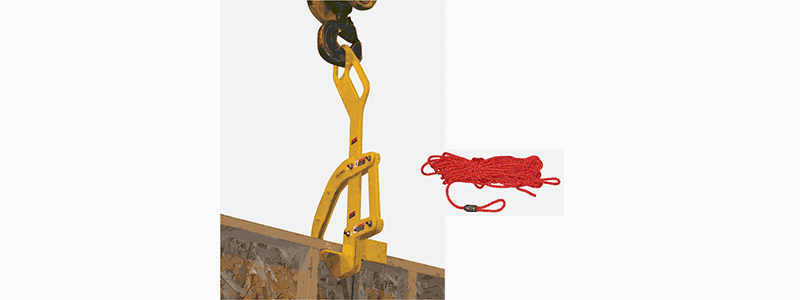

Panel moved to upright position and Wall Pick is ready to disengage using the rope release.
Product Features
- High quality lifting clamps designed to pick and place prefabricated wall panels used in housing and building construction.
- Designed to lift panels from a horizontal to a vertical position.
- Locking mechanism prevents the camp from releasing while loaded.
- The 50′ release rope allows the operator to release the clamp from the top of the panel once the load is set and secured.
- Lower lifting plate has an open design so it will clear nails or bolts Complies with ASME standards.
Product Specifications

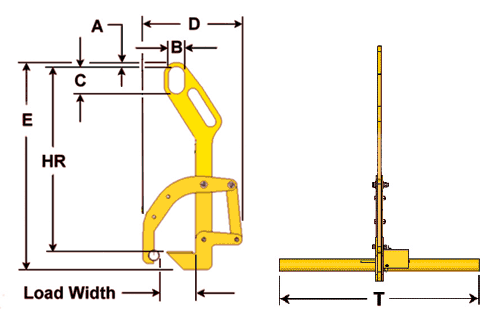

| Model WP Specifications | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model numbers shown in green are part of our INSTOCK program. | |||||||||||
| Model Number | Rated Capacity (lbs.) | Min Load Width (in.) | Max Load Width (in.) | A (in.) | B (in.) | C (in.) | D (in.) | E (in.) | HR (in.) | T (in.) | Weight (lbs.) |
| WP-1.25-4/6 | 2500 | 4.00 | 6.00 | .75 | 3.00 | 5.00 | 18.1 | 37.8 | 33.75 | 32.00 | 53.0 |
| WP-1.25-8/12 | 2500 | 8.00 | 12.00 | .75 | 3.00 | 5.00 | 23.8 | 39.8 | 35.75 | 32.00 | 62.0 |
|
WP-1.25-4/6 is designed for 2 x 4 or 2 x6 wall construction. |
|||||||||||
