Wirelink plus RLP 1 – 500 tonnes


The Wirelink plus is the non-indicating version of Straightpoint’s very popular Radiolink plus and Loadlink plus digital dynamometer tension load cells. This non-indicating Loadlink is designed for use with Straightpoint’s Handheld plus digital display, desktop controller PC software (DCP10M) or other form of instrumentation.

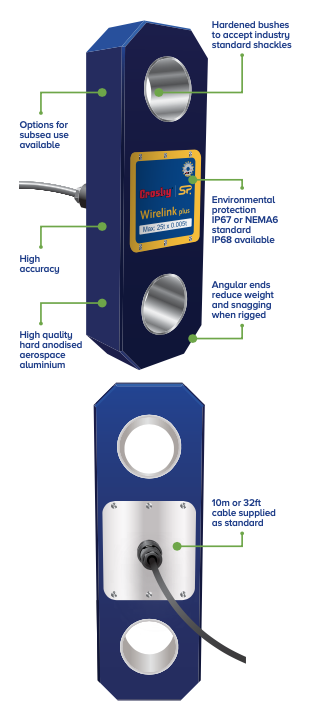

Manufactured from aerospace grade aluminium, utilising an advanced internal design structure, this range of non-indicating load cells are extremely lightweight, easy to handle and are used worldwide in an array of industries for lifting, pulling, proof and structural load testing.

The extremely versatile platform can be used with digital displays, including the Straightpoint Handheld plus, PLCs, data acquisition systems (DAQ) etc. They are configured with a vast array of output formats to include mV/V, RS-422, RS-485, utilising the ASCII, MODBUS RTU and CAN-BUS protocols.

A standard analogue output option is available to include:

  • 3 wire 0-10v
  • 3 wire 0-5v
  • 4 wire +/-10v
  • 3 wire 4-20mA
  • 2 wire 4-20mA

The Wirelink plus is supplied with a 10-metre cable as standard, however, usable cable length varies greatly with lengths available to 1,500 metres depending on output format.

Features and benefits:

  • Constructed of lightweight aluminum
  • Available in capacities ranging from 1 to 300 tonnes
  • High accuracy
  • Multiple output options to include mV/V, analogue out, ASCII, MODBUS RTU and CAN-BUS
  • Available with IP68 environmental protection
  • Options for subsea use available
  • 2-year warranty
  • DNV-GL Type Approval
  • Complies with ASME B30.26
Part Numbers SP WLP1T WLP2T5 WLP6T5 WLP12T WLP25T WLP35T WLP55T WLP75T WLP100T WLP150T WLP200T WLP250T WLP300T
Crosby 2789154 2789158 2789273 2789152 2789157 2789160 2789269 2789161 2789151 2789153 2789155 2789156 2789159
Capacity 1,000kg 2.5te 6.5te 12te 25te 35te 55te 75te 100te 150te 200te 250te 300te
2200lb 5500lb 14300lb 26000lb 55000lb 77000lb 120000lb 165000lb 220000lb 330000lb 440000lb 550000lb 660000lb
Resolution 0.5kg 0.001te 0.001te 0.002te 0.005te 0.005te 0.01te 0.01te 0.05te 0.05te 0.1te 0.1te 0.1te
1lb 2lb 2lb 5lb 10lb 10lb 20lb 20lb 100lb 100lb 200lb 200lb 200lb
Units kg te te te te te te te te te te te te
lb lb lb lb lb lb lb lb lb lb lb lb lb
Weight 1.5kg 1.5kg 2.4kg 3.7kg 5kg 8.6kg 13kg 16kg 34kg 46kg 82kg 82kg 118kg
3.3lb 3.3lb 5.3lb 8.2lb 11lb 19lb 28.7lb 35.3lb 75lb 101.4lb 180.8lb 180.8lb 260lb
Safety Factor 12:1 7:1 7:1 7:1 5:1 5:1 5:1 5:1 5:1 4:1 5:1 4:1 5:1
Operating Temp -10°C to +50°C or 14°F to 122°F
Accuracy ±0.1% of full scale
Protection IP67 or NEMA6

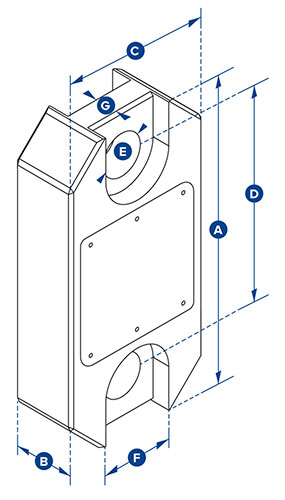

Dimension A 204 204 249 305 340 393 424 470 608 670 700 700 806
8.03” 8.03” 9.80” 12.01” 13.39” 15.47” 16.69” 18.50” 23.94” 26.38” 27.56” 27.56” 31.73”
Dimension B 43 43 43 47 60 75 75 75 99 99 144 144 150
1.69” 1.69” 1.69” 1.85” 2.36” 2.95” 2.95” 2.95” 3.90” 3.90” 5.67” 5.67” 5.91”
Dimension C 104 104 113 113 115 126 180 202 255 303 350 350 426
4.09” 4.09” 4.45” 4.45” 4.53” 4.96” 7.09” 7.95” 10.04” 11.93” 13.78” 13.78” 16.77”
Dimension D 146 146 165 193 215 225 230 260 320 360 350 350 350
5.75” 5.75” 6.50” 7.60” 8.46” 8.86” 9.06” 10.24” 12.60” 14.17” 13.78” 13.78” 13.78”
Dimension ØE 24.5 24.5 38 47.5 55 60 76 76 109 109 145 145 160
0.96” 0.96” 1.50” 1.87” 2.17” 2.36” 2.99” 2.99” 4.29” 4.29” 5.71” 5.71” 6.30”
Dimension F 48 48 66 Not relevant in this capacity
1.89” 1.89” 2.60”
Dimension G 19 19 32
0.75” 0.75” 1.26”
Crosby Shackle G2130 G2140
Loading Pin Ø 19 19 25 35 51 57 57 70 83 95 121 127 152
3/4” 3/4” 1” 1 3/8” 2” 2 1/4” 2 1/4” 2 3/4” 3 1/4” 3 3/4” 4 3/4” 5” 6”
