Pipe Hooks

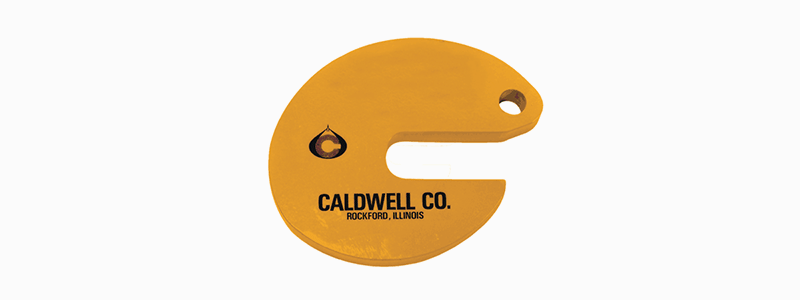

Model PH 1 shown. Note: Rated capacity is per pair.
Product Features
- Designed for lifting and carrying steel pipes and other types of pipe.
- Highly visible red enamel finish.
- Complies with ASME standards.
Product Specifications
| Model PH Specifications | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model numbers shown in green are part of our INSTOCK program. | |||||||||

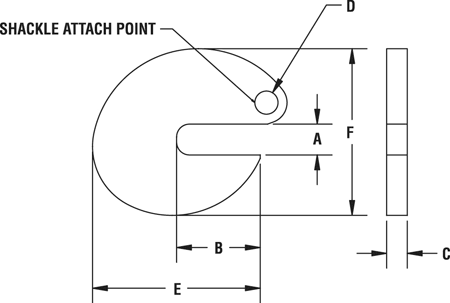

| Model Number | Rated Capacity Per Pair (tons) | Shackle Pin Dia. (in.) | A (in.) | B (in.) | C (in.) | D (in.) | E (in.) | F (in.) | Weight Per Pair (lbs.) |
| PH 1 | 2 | 5/8 | 1.50 | 1.81 | .63 | .69 | 3-3/4 | 5.25 | 7 |
| PH 2 | 4 | 3/4 | 1.50 | 2.63 | .75 | 13/16 | 5.69 | 6.75 | 13 |
| PH 4 | 8 | 1 | 1.50 | 3.88 | 1 | 1-1/16 | 7.75 | 7.75 | 23 |
|
FINISH: Red Enamel
|
|||||||||
