Product Features

  • Versatile assembly does many jobs.
  • Easily adjustable to accommodate a wide range of applications.
  • Heat-treated alloy steel construction.
  • Powder coating of Master Control Link helps prevent rust.
  • Plate is permanently stamped with capacity and serial number.

Product Specifications

Model CAAL Specifications
Model numbers shown in red are part of our QUICKSHIP program.

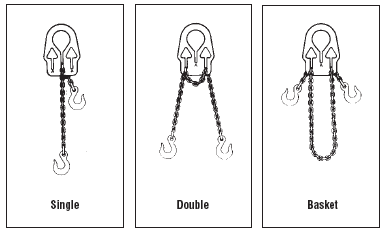

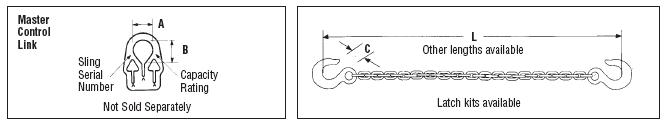

Model Number Rated Cap. (lbs.) Single at 90º Rated Cap. (lbs.) Double at 60º Chain Size (in.) A (in.) B (in.) C (in.) L (ft.) Weight (lbs.)
CAAL-7/32-6 2700 4700 7/32 2-3/16 2-11/16 15/16 6 5
CAAL-7/32-10 2700 4700 7/32 2-3/16 2-11/16 15/16 10 7
CAAL-9/32-6 4300 7400 9/32 2-7/8 3-1/2 1-1/16 6 8
CAAL-9/32-10 4300 7400 9/32 2-7/8 3-1/2 1-1/16 10 11
CAAL-3/8-10 8800 15200 3/8 3-3/4 4-5/8 1-9/16 10 19
CAAL-3/8-14 8800 15200 3/8 3-3/4 4-5/8 1-9/16 14 25
CAAL-1/2-10 12000 20800 1/2 4-3/8 4-3/8 2 10 42
CAAL-1/2-14 12000 20800 1/2 4-3/8 4-3/8 2 14 52
Never substitute another chain or exceed the rated capacity. The load bearing chain must be seated at the base of adjusting slot of the Master Control Link. The Alloy Chain and Master Control Link shall not be used separately for general purpose lifting.
7/32, 9/32, and 3/8 Master Control Links use Grade 100 Chain.
1/2" Master Control Link uses Grade 80 Chain.
WARNING: Minimum rigging angle is 45°.
