Product Features

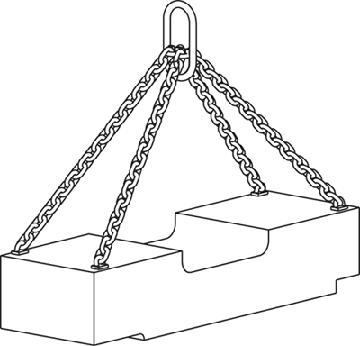

  • Allows unbalanced loads to be lifted evenly.
  • Allows full adjustment of sling length.
  • Rated for up to Grade 100 Chain.
  • Can use many different chain lengths with only one chain sling saddle ring.
  • Can be used with various chain sling end fittings.
  • Economical and easy to use.

Product Specifications

Model CSS Specifications
Model numbers shown in green are part of our INSTOCK program.
Model Number CSS-9/32 CSS-3/8 CSS-1/2
Chain Size (in.) 9/32 3/8 1/2
Overall Ring Height (in.) 6 7.50 10
Capacity (lbs.) Grade Chain 80 - 90º Single Leg 3500 7100 12000
Capacity (lbs.) Grade Chain 80 - 60º DL Loading 6100 12300 20800
Capacity (lbs.) Grade Chain 80 - 45º DL Loading 4900 10000 17000
Capacity (lbs.) Grade Chain 80 - 30º DL Loading 3500 7100 12000
Capacity (lbs.) Grade Chain 80 - 60º QL Loading 9100 18400 31200
Capacity (lbs.) Grade Chain 80 - 45º QL Loading 7400 15100 25500
Capacity (lbs.) Grade Chain 80 - 30º QL Loading 5200 10600 18000
Capacity (lbs.) Grade Chain 100 - 90º Single Leg 4300 8800 15000
Capacity (lbs.) Grade Chain 100 - 60º DL Loading 7400 15200 26000
Capacity (lbs.) Grade Chain 100 - 45º DL Loading 6100 12400 21200
Capacity (lbs.) Grade Chain 100 - 30º DL Loading 4300 8800 15000
Capacity (lbs.) Grade Chain 100 - 60º QL Loading 11200 22800 39000
Capacity (lbs.) Grade Chain 100 - 45º QL Loading 9100 18600 31800
Capacity (lbs.) Grade Chain 100 - 30º QL Loading 6450 13200 22500
DL Weight (lbs.) 2 4 9
QL Weight (lbs.) 4 8 11
