High Capacity Beam End Fittings
The same end fittings that build our high capacity spreader beams are available as end fittings only. This allows you to stock one or several sizes of end fittings; work with a local steel supplier to provide cut to length schedule 80 pipe drill accordingly; and add the required top rigging. Now you can respond to your customers needs with a quickly built, ASME compliant spreader beam.

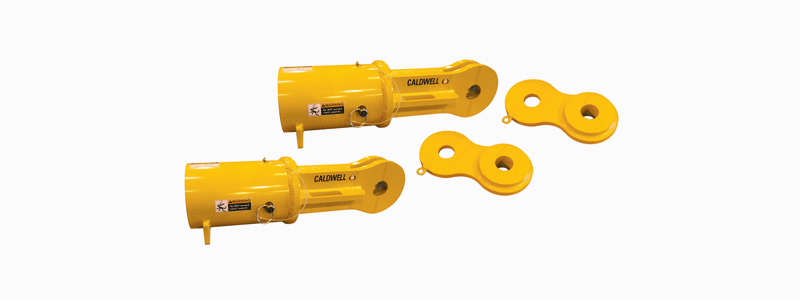

Beam End Fittings - shows as sold. All hardware is optional.

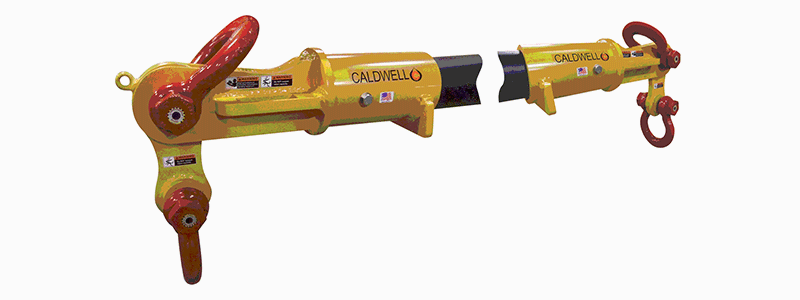

Model HC-BEF - High Capacity Beam End Fittings shown with optional rigging shackles.
Product Features
- Build your own spreader beam.
- Fittings only are available in 2 business days.
- Pivoting lower lugs allow for 75° to 90° lower rigging angle.
- Complies with ASME standards when assembled to specifications using designated pipe and rigging.
Product Specifications
| Model HC-BEF Specifications | ||
|---|---|---|
| Model numbers shown in green are part of our INSTOCK program. | ||
| Model Number | Max. Capacity (tons)* | Schedule 80 Pipe Size |
| BEF-5HC-25 | 25 | 5 |
| BEF-5HC-50 | 50 | 5 |
| BEF-8HC-50 | 50 | 8 |
| BEF-8HC-80 | 80 | 8 |
| BEF-12HC-80 | 80 | 12 |
| BEF-12HC-110 | 110 | 12 |
| BEF-12HC-130 | 130 | 12 |
|
Maximum End Fitting Capacity Per Pair. |
||
