Spreader Beam End Fittings

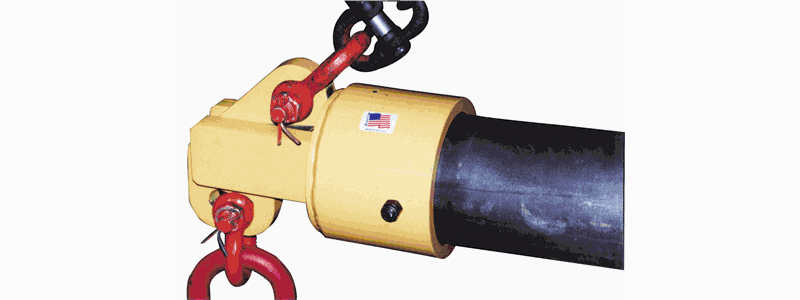

Model BEF-2-1/2 shown.

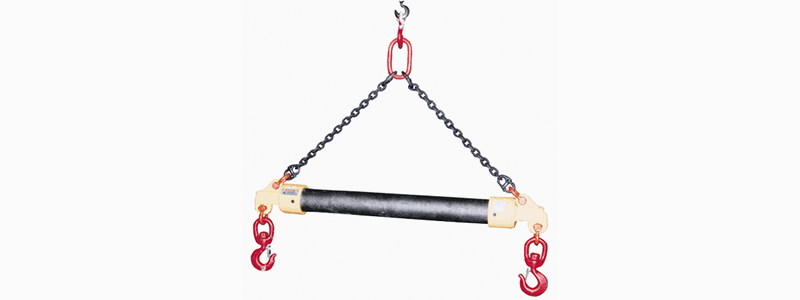

Model BEF-2-1/2 shown fully assembled with customer supplied rigging and bar.
Product Features
- Build your own spreader beam.
- Designed to work with a range of shackle sizes, both top and bottom.
- Complies with ASME standards when assembled to specifications using schedule 40 pipe.
Product Specifications
|
Model No. Spread (ft.) |
Capacity (tons) |
Weight (lbs.) Per Pair |
||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 5 | 6 | 8 | 10 | 12 | 14 | 15 | 16 | 18 | 20 | 22 | 24 | 26 | 28 | 30 | 32 | 34 | 36 | ||
| BEF-2-1/2 | 7.5 | 7 | 6.5 | 5.5 | 4 | 2.9 | 2 | 1.8 | - | - | - | - | - | - | - | - | - | - | - | 16 |
| BEF-5 | 17 | 17 | 17 | 17 | 17 | 16 | 15 | 14 | 13 | 12 | 10 | 8 | 7 | 6 | 5 | 4.5 | - | - | - | 46 |
| BEF-8 | 39 | 39 | 39 | 39 | 39 | 38 | 36 | 36 | 35 | 33 | 31 | 29 | 27 | 25 | 23 | 21 | 19 | 16 | 15 | 266 |
| Model BEF Specification | |||
|---|---|---|---|
| Model numbers shown in green are part of our INSTOCK program. | |||
| Model Number | Spread Min. - Max. (ft.) | Capacity Min. - Max. (tons) | Weight Per Pair (lbs.) |
| BEF-2-1/2 | 4 - 15 | 7.5 - 1.8 | 16 |
| BEF-5 | 4 - 30 | 17 - 4.5 | 46 |
| BEF-8 | 4 - 36 | 39 - 15 | 266 |
|

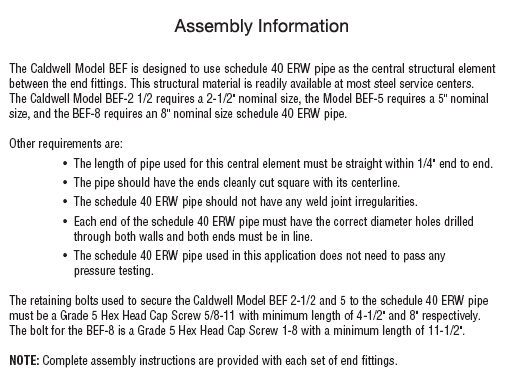

NOTE: Capacity based on minimum 45° top rigging angle. Other sizes available, consult factory.
|
|||
