INSIGHT Software

INSIGHT software, supplied with an SW-D USB wireless dongle, allows connection of up to 126 Straightpoint wireless load cells simultaneously onto any Windows tablet or laptop.

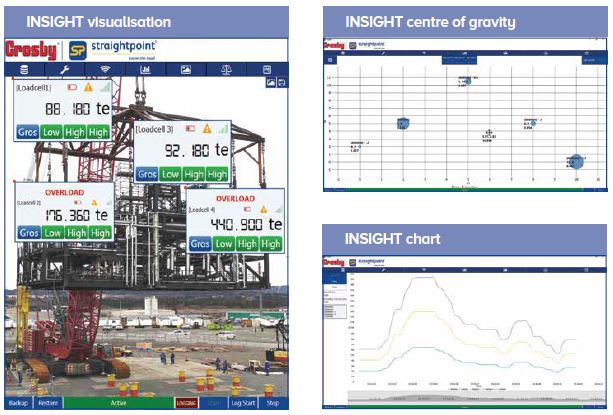

    Insight has three main features:
  • Multi-channel display and data logging mode – view and log load data from connected load cells plus totals loads live on screen and directly into a .csv file for later analysis at speeds of up to 200Hz.
  • Visualization mode–For complicated lifts import a photo of the lift and drag and drop load cell displays – make the screen look like the lift.
  • Centre of gravity mode–Connect to SP’s range of wireless compression load cells and use this feature to weigh and calculate the centre of gravity of large items and structures.

Features and benefits:

  • Logging at timed intervals, manual or on overload/under-load
  • Visual and audible alarms indicate overload, underload, low battery and communications error
  • 100% wireless, no easily damaged cables
  • 700m or 2300ft range
  • Three weighing’s per C of G report with averages and statistical analysis to ISO19901
  • Plot load cell positioning using measurements or GPS co-ordinates
  • Extra fields for operator, client, wind speed and temperature available for reporting
Global Specifications – Insight Software
Part number INSIGHT
Crosby Part number 2789318
USB Dongle Operating temperature -20°C to 55°C  or -4°F  to 131°F
Licence Licence free
Wireless Frequency 2.4GHz
Wireless Range 700 metres or 2300 feet
Loadcell inputs Up to 126
PC requirements Intel i3 processor with 2 gb RAM.
Operating system Windows 7 , Windows 8, windows10
