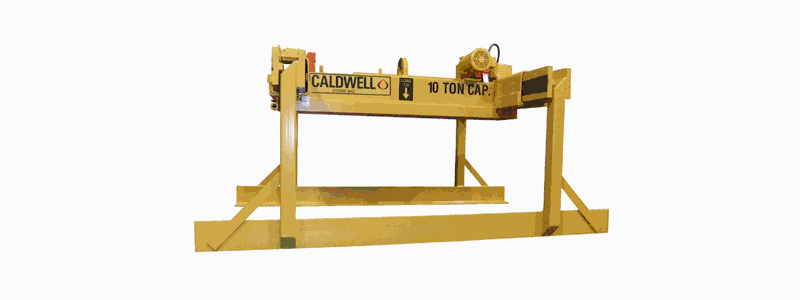

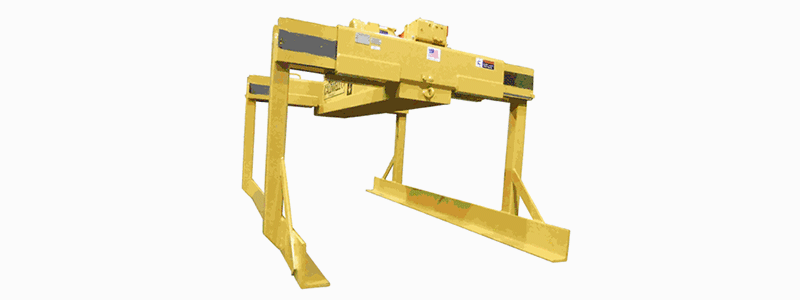

Motorized HD Sheet Lifter
Product Features
- Versatile handling of bundles, sheets, plates and other materials stacked horizontally.
- Low headroom design for optimum lifting capabilities.
- One person operation minimizes handling cost.
- Self-locking worm gear drive for leg adjustment is standard.
- Easy adjustment for different sheet widths.
- Motorized leg adjustment, 460 volt.
- Rack and pinion leg drive.
- Designed for ease of maintenance.
- Broad adjustment range handles various load widths.
- Complies with ASME standards.
Product Options
- End chains with plate hooks (recommended for all widths 72” and greater).
- Extended grab shoe lengths.
- Longer legs increase load clearance.
- Controls shipped mounted or loose.
- Other voltages available.

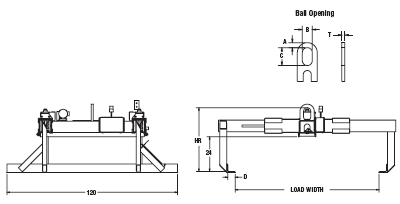

Product Specifications
| Model 60M Specifications | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model Number | Capacity (tons) | LW Min (in.) | LW Max (in.) | HR (in.) | D (in.) | AW (in.) | A (in.) | B (in.) | C (in.) | T (in.) | Weight (lbs) |
| 60M-20-96 | 20 | 38 | 96 | 45 | 5.25 | 15 | 2.5 | 5 | 9 | 1.5 | 3150 |
|
Other sizes available, consult factory.
|
|||||||||||
