Product Features

  • Hand wheel adjustable forks for ease of adjustment.
  • Converts overhead crane to lift truck.
  • Handles multiple pallet sizes.
  • Complies with ASME standards.

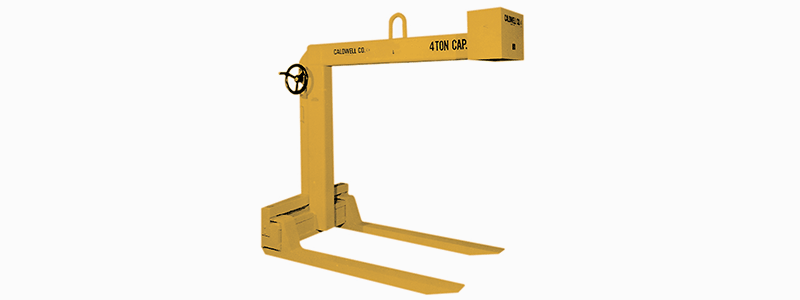

Model 92 Handwheel Pallet Lifter
Adjusting the forks on a Model 92 Handwheel Pallet Lifter is fast and easy.

Product Specifications

Model 92 Specifications
Dimensions show in inches unless noted.
Model Number Capacity (tons) L M N W - Min W - Max E A B C J* HR Weight (lbs.)
92-1-36 1 36 2 2 16 38 18 1 3 5 48 58 890
92-1-42 1 42 2 2 16 38 21 1 3 5 48 58-1/2 800
92-1-48 1 48 2 2 16 38 24 1 3 5 48 58-1/2 1051
92-1.1/2-36 1.1/2 36 3 2 22-1/2 38 18 1 3 5 48 58 1000
92-1.1/2-42 1.1/2 42 3 2 22.1/2 38 21 1 3 5 48 60 1055
92-1.1/2-48 1.1/2 48 3 2 22.1/2 38 24 1 3 5 48 60 1130
92-2-36 2 36 3 2 22.1/2 38 18 1 3 5 48 60 1105
92-2-42 2 42 4 2 23 38 21 1 3 5 48 60 1351
92-2-48 2 48 4 2 24 38 24 1 3 5 48 59.1/2 1360
92-3-42 3 42 5 2 23 38 21 1.1/2 4 7 48 61.1/2 1465
92-3-48 3 48 4.1/2 2.1/2 24 38 24 1.1/2 4 7 48 63.1/2 1600
92-3-54 3 54 4.1/2 2.1/2 24 38 27 1.1/2 4 7 48 63 2130
92-4-48 4 48 5 3 28.1/2 38 24 1.1/2 4 7 48 62.1/2 2035
92-4-60 4 60 5 3 28.1/2 38 30 1.1/2 4 7 60 76 2385
92-5-48 5 48 5 3 25.1/2 38 24 1.1/2 4 7 48 65 2550
92-5-60 5 60 4.1/2 2.1/2 25.1/2 38 30 1.1/2 4 7 60 79 2740
* We recommend an additional 3 - 4" clearance above the load for ease of loading and unloading the lifter.
